Remove/Install Trim At C-Pillar - AR68.30-P-4490MFV

Model 118.3, 177.1/9

Shown on model 177.1

Courtesy of MERCEDES-BENZ USA

	Remove/install

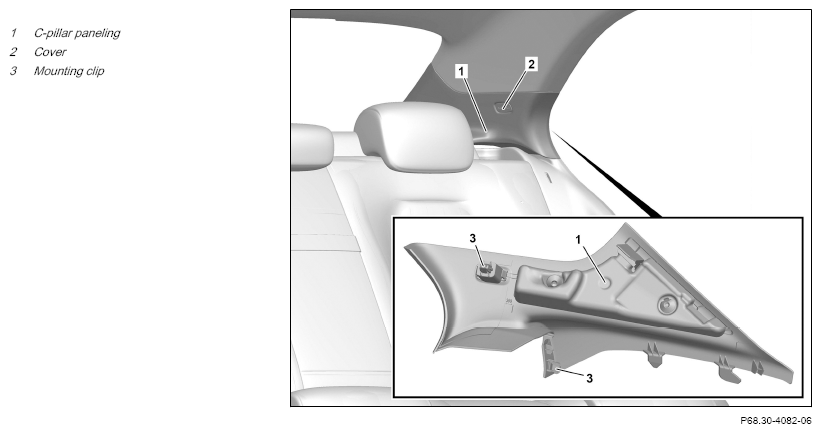

1	Remove cover (2).	Long wedge	Fig 1
2	Unclip and remove C-pillar trim (1) at retaining clips (3).	: Ensure that the edge guard is seated correctly in the working area.
3	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
