Remove/Install Sun Visor - AR68.60-P-5480MFA
Model 118, 177, 243, 247
| Remove/install | |||

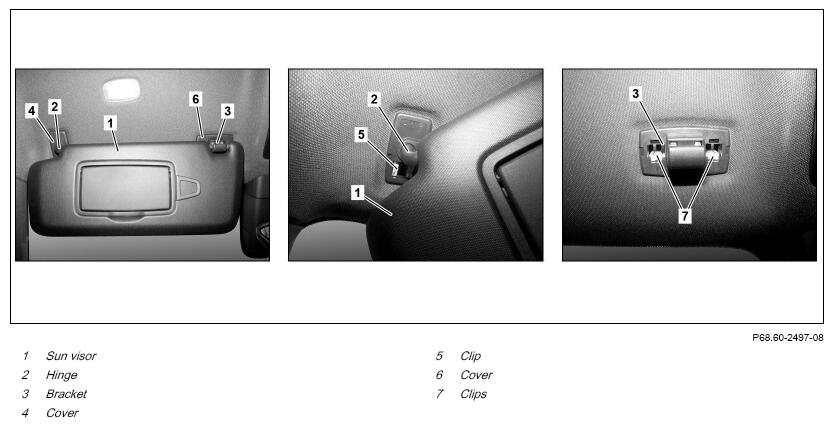

| 1 | Unclip sun visor (1) from bracket (3) and swivel to side | ||
| 2 | Unclip cover (4) at hinge (2) and remove | ||
| 3 | Press clips (5) together on hinge (2) and remove sun visor (1) | ||
| 4 | Unclip cover (6) at bracket (3) and remove | If bracket (3) is removed. | |
| 5 | Press clips (7) at bracket (3) together and remove bracket (3) | If bracket (3) is removed. | |
| 6 | Install in the reverse order |
