Remove/Install Inside Rearview Mirror - AR68.40-P-0001MFA
Model 118, 177, 243, 247
| Risk of injury caused by irritation of the skin, eyes and respiratory system through contact or inhalation of substances contained in the mirror lens. | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Perform commissioning of garage door opener. | Model 118, 177, 243, 247 with code 232 (Garage door opener with frequency 284-390 MHz) Model 118, 177, 247 with code 231 (Garage door opener) When replacing inside rearview mirror (A67). |
|
| Notes on programming garage door opener transmitter unit | AH68.05-P-0002-01A | ||
| AD00.00-P-2000-06MFA | |||

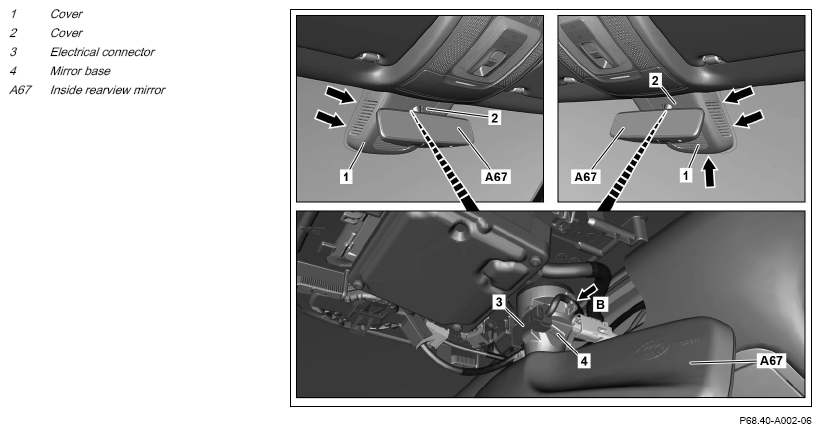

| 2 | Unclip cover (1) (arrows) and remove. | Fig 1 | |
| 3 | Unclip cover (2) from mirror base (4). | ||
| 4 | Release and disconnect electrical connector (3) and guide electric line out of mirror base (4) (arrow B). | If installed. | |
| 5 | Turn inside rearview mirror (A67) on mirror base (4) with suitable open-end wrench and remove from mirror bracket. | ||
| Check | |||
| 6 | Check catch hooks of cover (1). | If damage is present, ↓ Replace cover (1). |
|
| 7 | Check catch hooks of cover (2). | If damage is present, ↓ Replace cover (2). |
|
| 8 | Install in the reverse order | ||
| Adjust | |||
| 9 | Adjust inside rearview mirror (A67) to steering variant. | When replacing inside rearview mirror (A67). Model 118, 177, 243, 247 with code 232 (Garage door opener with frequency 284-390 MHz) Model 118, 177, 243, 247 with code U62 (Exterior light and sight package) Model 118, 177, 247 with code 231 (Garage door opener) |
AR68.40-P-0001-01MFA |
