Remove/Install Handle On Roof - AR68.30-P-4330MFA
Model 118, 177
except code 413 (Panoramic sliding sunroof/glass roof)
Model 243, 247
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||

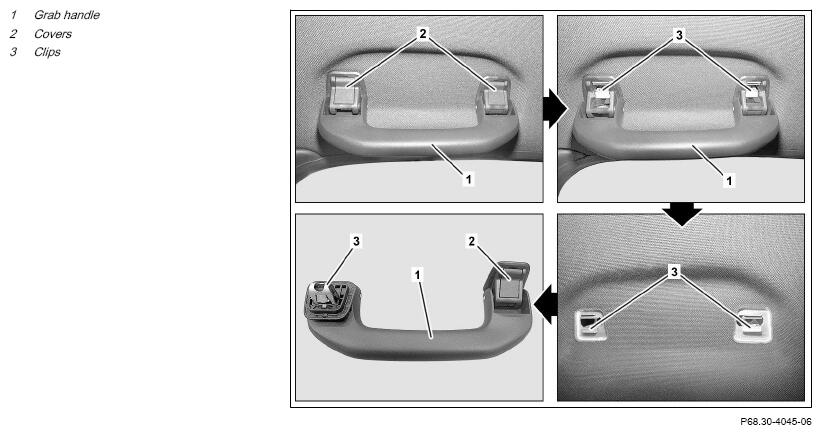

| 1 | Remove covers (2) | ||
| 2 | Press clips (3) together and remove grab handle (1) | ||
| 3 | Release and disconnect electrical connector of rear interior lamp at rear grab handle (1) | If installed. | |
| 4 | Remove clips (3) from body | ||
| Install | |||
| 5 | Clip clips (3) and covers (2) into grab handle (1) | ||
| 6 | Connect electrical connector of rear interior lamp at rear grab handle (1) | If installed. | |
| 7 | Clip grab handle (1) into roof | ||
| Check | |||
| 8 | Check grab handle (1) on roof | AR68.30-P-4330-01NKB |
