Remove/Install Roller Sun Blind On Panoramic Sliding Roof - AR77.21-P-0215MFA

Model 118, 177

with code 413 (Automatic panoramic sliding sunroof)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove sliding roof panel.		AR77.20-P-2854MFA
2	Remove wind deflector for panoramic sliding sunroof.		AR77.21-P-0101MFA
3	Switch on ignition and move mechanical sliding sunroof components to closed position.

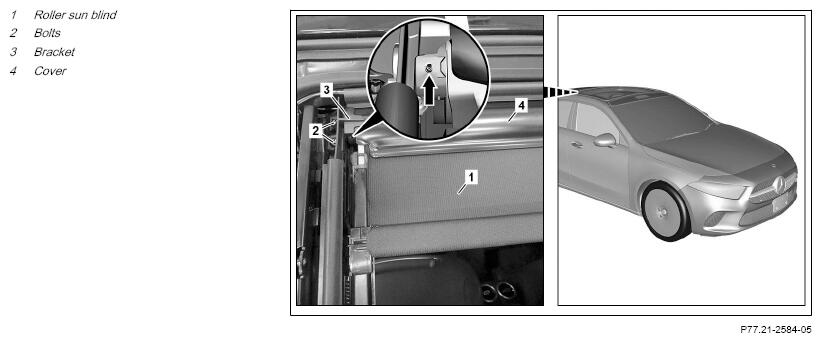

4	Move roller sunblind (1) toward front until locking bore (arrow) is visible.	Helper required. Locking bore (arrow) is only present on right side of vehicle.
5	Move front seats and seat backrests to foremost position.
6	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
7	Insert locking pin in locking bore (arrow).	Locking pin to be produced by customer, e. g. a stainless steel welding wire.
8	Remove screw/bolts (2).	The instructions are shown only for one side and must be carried out on both sides.
9	Lift bracket (3), detach roller sunblind (1) remove bracket (3).	Only on right hand side of vehicle.
10	Remove cover (4).

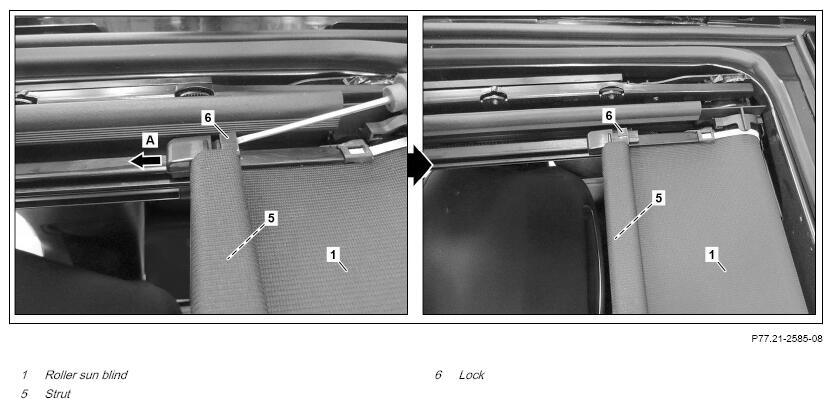

11	Release lock (6) and pull roller sunblind (1) forward (arrow direction A) at strut (5).	The instructions are shown only for one side and must be carried out on both sides.

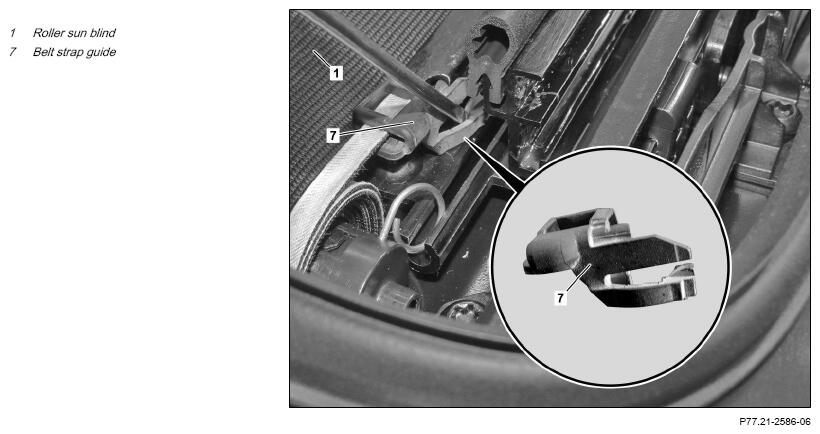

12	Unclip belt strap guide (7) from roller sunblind (1) and guide out of fabric.	The instructions are shown only for one side and must be carried out on both sides.
13	Remove fabric from guide rails.
14	Tilt roller sunblind (1) forwards and move out in forward direction.	Helper required.
15	Install in the reverse order.
