Adjust Panoramic Sliding Sunroof - AR77.21-P-6924MFA
Model 118, 177, 243, 247
with code 413 (Panoramic sliding sunroof/glass roof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Check | |||
| 1 | Close sliding roof panel (1). | ||

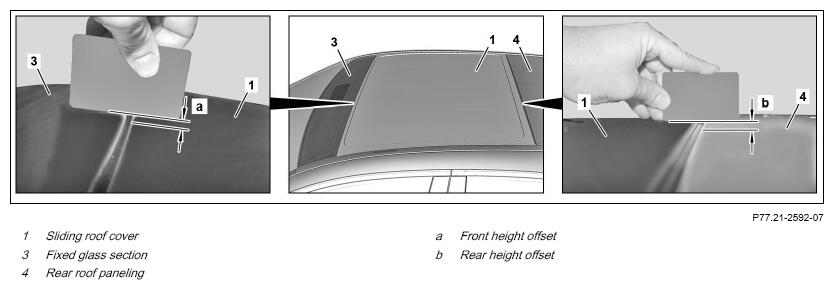

| 2 | Check front height offset (a) of fixed glass section (3) to sliding roof panel (1) and adjust if necessary. | The dimension of the front height offset (a) must be the same size over the entire width of sliding roof panel (1). |
|
| 3 | Check rear height offset (b) of sliding roof panel (1) to rear roof paneling (4) and adjust if necessary. | The dimension of the rear height offset (b) must be the same over the entire width of sliding roof panel (1). |
|
| Adjust | |||
| 4 | Raise sliding roof panel (1) to tilt position and open until screws (2) can be accessed. | ||

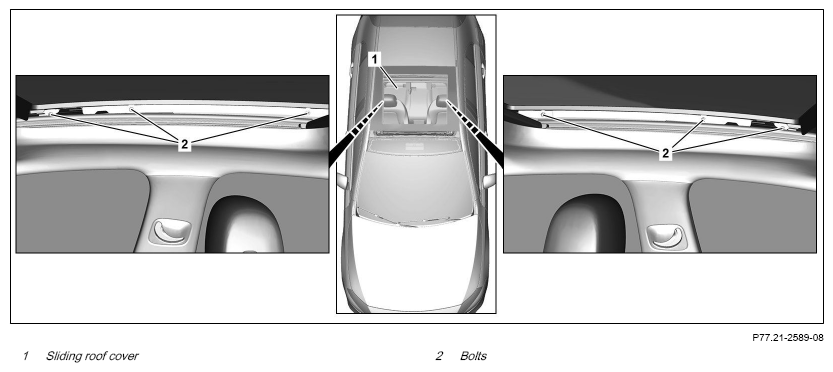

| 5 | Release all screws (2) until sliding roof panel (1) can just be moved. | ||
| 6 | Close sliding roof panel (1). | ||
| 7 | Set front height offset (a) at sliding roof panel (1) so that rear edge of fixed glass section (3) is flush with or lies max. 2 mm above fully closed sliding roof panel (1). | ||
| 8 | Raise sliding roof panel (1) to tilt position and open until front screws (2) can be accessed. | ||
| 9 | Tighten front screws (2) at sliding roof panel (1). | ||
| 10 | Close sliding roof panel (1). | ||
| 11 | Set rear height offset (b) at left and right side of sliding roof panel (1) so that rear edge of sliding roof panel (1) is flush with or lies max. 2 mm above rear roof paneling (4). | ||
| 12 | Raise sliding roof panel (1) to tilt position and open until rear screws (2) can be accessed. | ||
| 13 | Tighten rear screws (2) at sliding roof panel (1). | ||
| 14 | Close sliding roof panel (1). | ||
| Concluding tasks | |||
| 15 | Normalize panoramic sliding sunroof using vehicle diagnosis system and perform teach-in run for automatic reversing function. | ||
| AD00.00-P-2000-06MFA |
