Check Low Temperature Circuit Cooling System For Leaks - AR09.41-P-1010MFG
Engine 139 in model 118, 177, 247
Shown on model 177
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove | |||
| 1 | Remove upper engine cover. | ||
| AP01.10-P-2405-01K | |||
| 2 | Remove bottom engine compartment lining. | Only if there are leaks in the engine cooling system. | AR61.20-P-1105MFR |
| 3 | Remove cap from coolant expansion reservoir (1). | ||
| Check | |||
| 4 | Check antifreeze content of coolant. | *BF20.00-P-1001-06J | |
| If antifreeze content is too low, ↓ Replace coolant. |
AR09.41-P-6834MFG | ||
| 5 | Check coolant level. | Engine 139 in model 118, 177, 247 | |
| Engine 139 in model 118, 177 | AP20.30-P-2052P | ||
| *BF20.00-P-1001-06J | |||

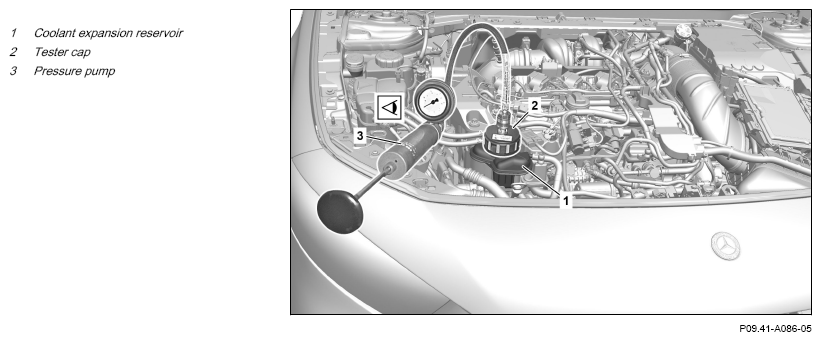

| 6 | Attach tester cap (2) to coolant expansion reservoir (1). | Fig 1 | |
| 7 | Connect pressure pump (3) to tester cap (2). | Fig 2 | |
| 8 | Apply a test pressure to the engine cooling system for 2 minutes. | Damage will occur otherwise to the engine cooling system. |
|
| *BE20.30-P-1005-01A | |||
| 9 | Check condition of all coolant carrying component parts and connections and check for leak tightness. | In the event of pressure loss. If there are problems: ↓ Replace corresponding components. |
|
| Install | |||
| 10 | Reduce test pressure in coolant circuit via pressure release button at pressure pump (3). | ||
| 11 | Remove the pressure pump (3) from the tester cap (2). | ||
| 12 | Remove tester cap (2) on coolant expansion reservoir (1). | ||
| 13 | Check coolant level. | Engine 139 in model 118, 177, 247 | |
| Engine 139 in model 118, 177 | AP20.30-P-2052P | ||
| *BF20.00-P-1001-06J | |||
| 14 | Seal coolant expansion reservoir (1) with cap. | ||
| 15 | Install lower engine compartment lining. | Only if there are leaks in the engine cooling system. | AR61.20-P-1105MFR |
| 16 | Install upper engine cover. | ||
| AP01.10-P-2405-01K |
RADIATOR OR EXPANSION RESERVOIR CAP
| Number | Designation | 2-stage latch cover | ||
|---|---|---|---|---|
| BE20.30-P-1005-01A | Test pressure for pressure-testing the engine cooling system | Overpressure | bar | 1, 4 |
COOLING SYSTEM
| Number | Designation | Engine 139 in model 118, 177, 247 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-06J | Cooling system | Workshop replacement amount | Main circuit | Liter | 11, 6 |
| Low Temperature circuit 1 | Liter | 2, 6 | |||
| Low Temperature circuit 2 | Liter | - | |||
| Antifreeze/water | to -37°C | % | 50/50 | ||
| as from -38°C | % | 55/45 | |||
| References to sheet specification | BB00.40-P-0310ZZ | ||||
