Remove/Install Coolant Expansion Reservoir - AR20.30-P-4949MFG
Engine 139 in model 118, 177, 247
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||

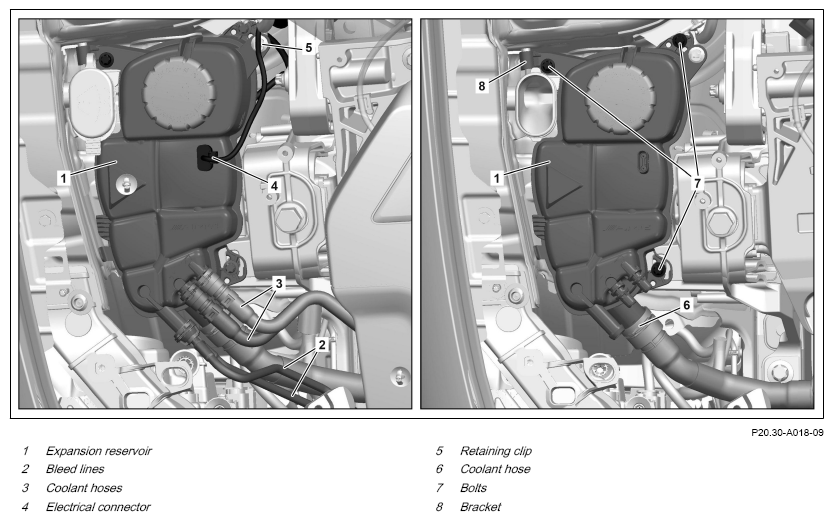

| 1 | Remove the cap of expansion reservoir (1). | ||
| 2 | Extract coolant from expansion reservoir (1). | Fig 1 | |
| 3 | Remove bleed lines (2) from the expansion reservoir (1) and plug openings with suitable stop plugs. | Fig 3 | |
| 4 | Remove coolant hoses (3, 6) from the expansion reservoir (1) and plug openings with protective covers. | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| 5 | Release and disconnect electrical connector (4) on expansion reservoir (1). | ||
| 6 | Remove retaining clip (5) with electric line from expansion reservoir (1) and place to one side. | ||
| 7 | Unscrew the screws (7). | *BA00.10-P-1002-04A | |
| 8 | Unclip the expansion reservoir (1) on the holder (8) upwards. | ||
| 9 | Remove expansion reservoir (1). | ||
| 10 | Install in the reverse order. | ||
| Check | |||
| 11 | Check engine cooling system for leak tightness. | AR20.00-P-1010MFG | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run and check engine for proper operation and leak tightness. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
