Cab Signal Acquisition And Actuation Module Control Unit (SCA), Component Description - GF54.21-P-0007L
Model 118
as of model year 2023
Model 177, 247
as of model year 2022
Illustration valid for model 118, 177, 247

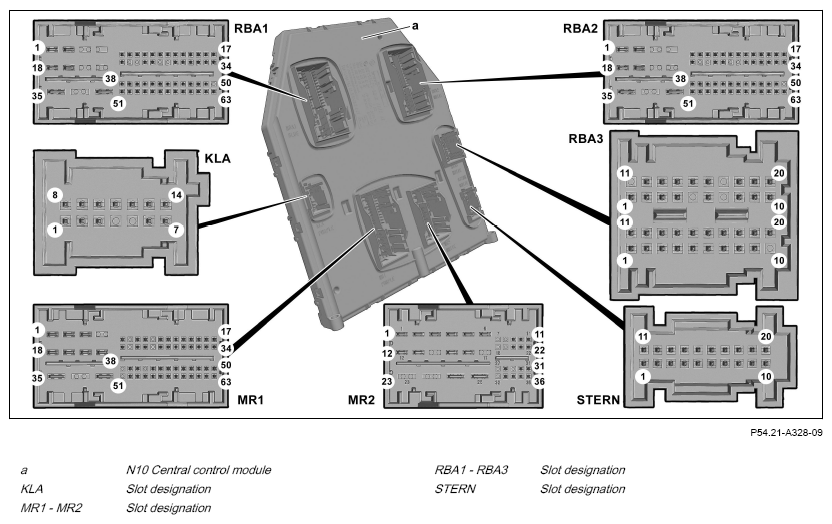

The numbers on the pins indicate the pin numbering of the slots.

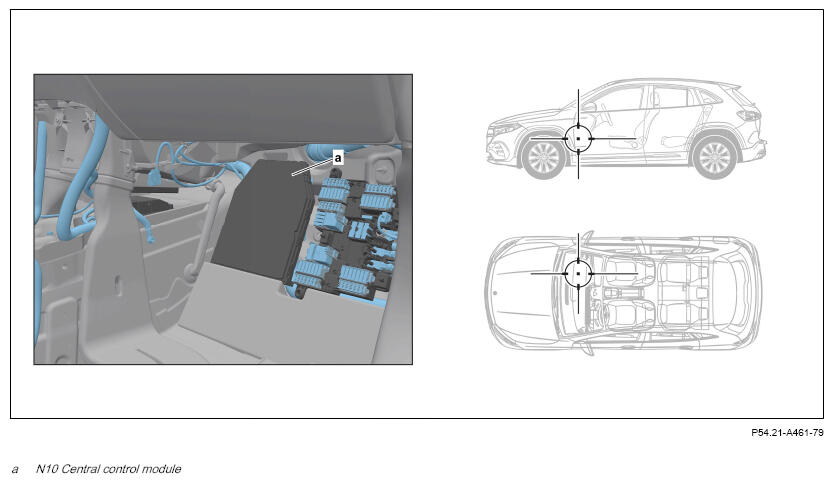

Fig 1: Cab Signal Acquisition And Actuation Module Control Unit (SCA) Components Location - Model 118 As Of Model Year 2023
Location on model 118, 177, 247
