Spare Tire Well Preparation - Ar64.20-P-1245-02MFC
Model 118
The superordinate service document as well as the safety information in the service document must be observed.

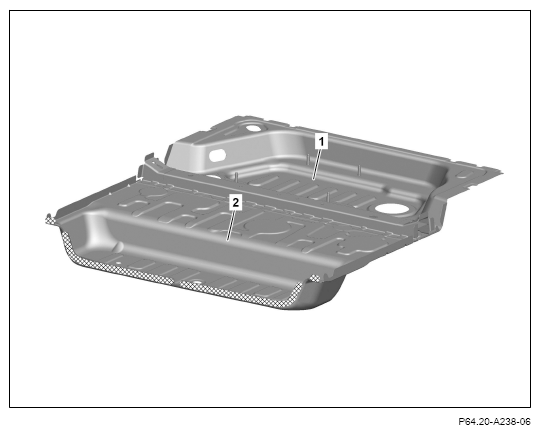

- Grind spare wheel well (1) and rear-end floor (2) down to bare metal in the cross-hatched area.
Observe pretreatment of bonding surfaces.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust.
