Spare Tire Well Installation - Ar64.20-P-1245-03MFC

Model 118

REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1055-13A Countersunk-head blind rivet Z3 6.4x17.0 (clamping area 4.5 mm to 6.5 mm, draw-off strength min. 15.5 kN) A 000 991 86 32
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71

IMPORTANT

The superordinate service document as well as the safety information in the service document must be observed.

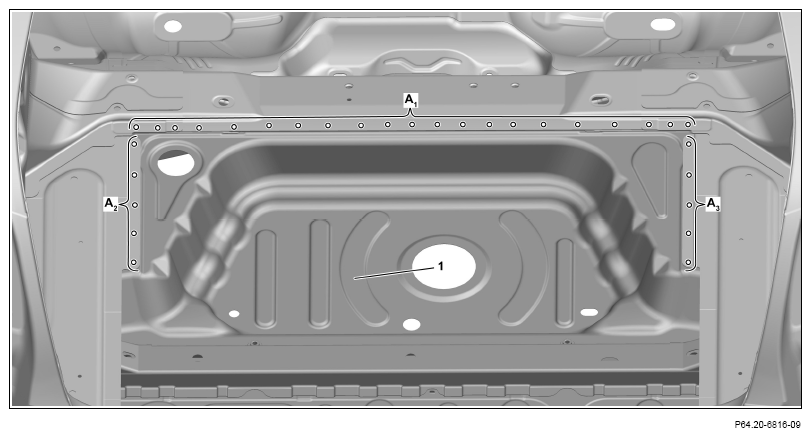

G14689503Courtesy of MERCEDES-BENZ USA
  1. Install and fit spare wheel well (1) and rear-end floor (2).
  2. Fix in place spare wheel well (1) and rear-end floor (2).
  3. Drill rivet holes in spare wheel well (1) with Ø 6.7 mm (areas A1 , A2 , A3 ).

    IMPORTANT

    Drill rivet holes through existing holes in body.

  4. Countersink rivet holes.

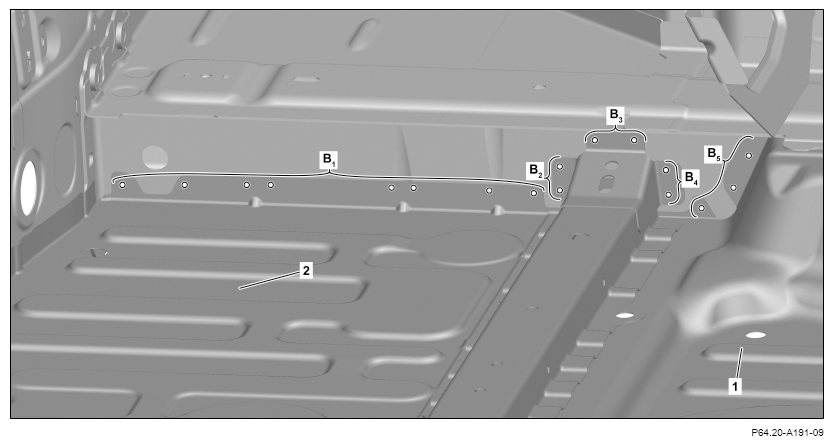

    G16063719Courtesy of MERCEDES-BENZ USA

    IMPORTANT

    Operation steps  5 and  6 are shown on left side of vehicle. Perform in same manner on right side of vehicle.

  5. Drill rivet holes in spare wheel well (1) and rear-end floor (2) with Ø 6.7 mm (areas B1 , B2 , B3 , B4 and B5 ).
  6. Countersink rivet holes.
  7. Remove spare wheel well (1) and rear-end floor (2).
  8. Deburr rivet holes on spare wheel well (1), rear-end floor (2) and body on both sides.
  9. Remove drill chips.
  10. Coat insides of riveted joints with zinc dust paint.

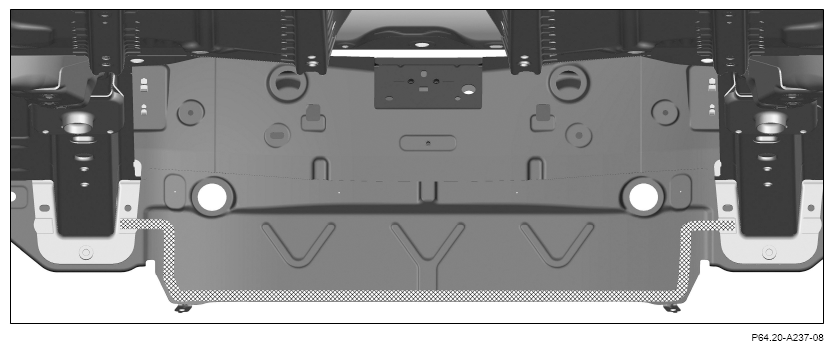

    G16063716Courtesy of MERCEDES-BENZ USA
  11. Apply 2-component adhesive in the cross-hatched areas on body.

    IMPORTANT

    In this area, the 2-component adhesive is partially stripped off during installation of spare wheel well (1) with rear-end floor (2), this must be compensated for via the application of additional adhesive. Also apply 2-component adhesive to new part.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

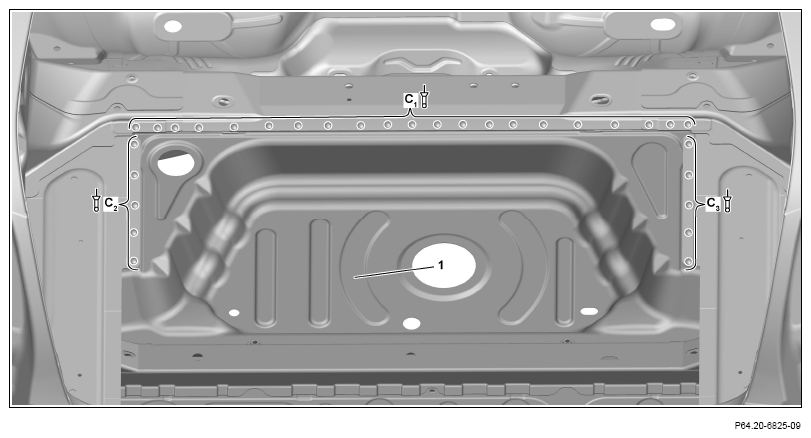

    G14689515Courtesy of MERCEDES-BENZ USA
  12. Install and fix in place spare wheel well (1) and rear-end floor (2).
  13. Rivet spare wheel well (1) with Ø 6.4x17 mm rivets (areas C1 , C2 and C3 ).

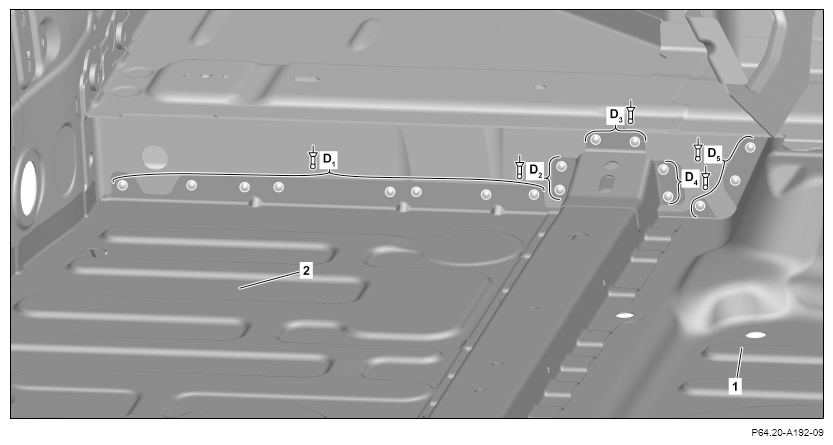

    G16063722Courtesy of MERCEDES-BENZ USA

    IMPORTANT

    Operation step 14 is shown on the left side of the vehicle. Perform in same manner on right side of vehicle.

  14. Rivet spare wheel well (1) and rear-end floor (2) with Ø 6.4x17 mm rivets (areas D1 , D2 , D3 , D4 and D5 ).

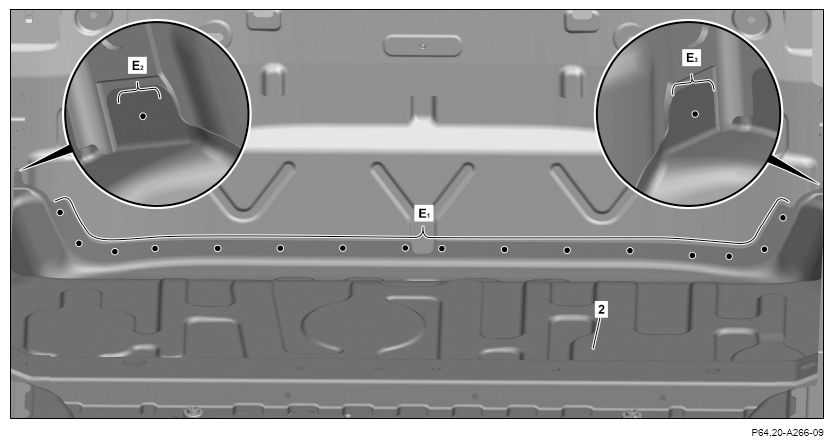

    G16063723Courtesy of MERCEDES-BENZ USA
  15. Rear-end floor (2) POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas E1 , E2 and E3 ).
