Longitudinal Member At Rear Removal - Ar64.20-P-1200-22MFD

Model 118.3/6

The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

Further information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

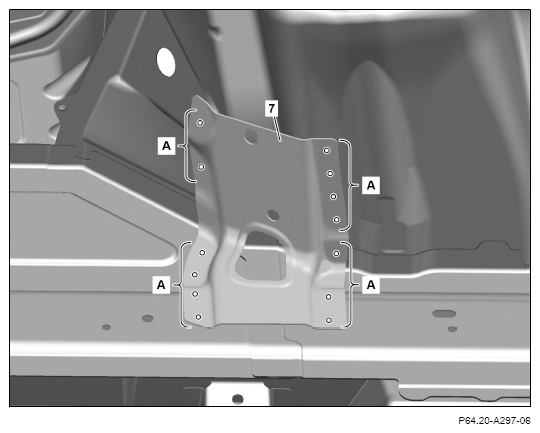

1. Expose spot welds at mounting support (7) and drill out with Ø 6.5 mm (areas A).
2. Remove mounting support (7).
3. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

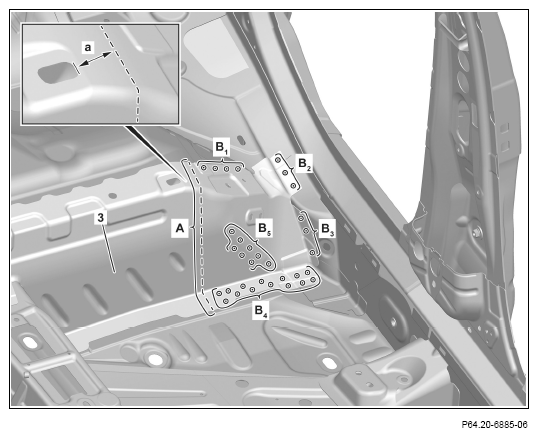

4. Mark separating point on rear seat reinforcement (3) and cut (area A).

   Do not cut too deeply.

   Otherwise the component parts below can be damaged and weakened.



   Dimensions:

   a = 40 mm

5. Expose spot welds at rear seat reinforcement (3) and cut off (areas B₁ , B₂ , B₃ , B₄ and B₅ ).
6. Remove rear seat reinforcement (3) section.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

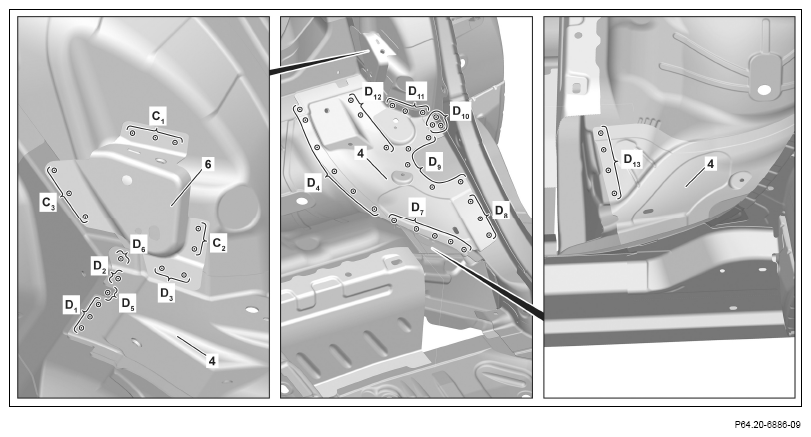

7. Expose spot welds at rear bench seat mount (6) and cut off (areas C₁ , C₂ and C₃ ).
8. Expose spot welds at rear bench seat mount (6) and cut off through two panel thicknesses (area D₃ ).
9. Remove rear bench seat mount (6).
10. Expose spot welds at cover (4) and cut off (areas D₄ , D₅ , D₆ , D₇ , D₈ , D₉ , D₁₀ , D₁₁ , D₁₂ , and D₁₃ ).
11. Expose spot welds at cover (4) and cut off through two panel thicknesses (areas D₁ and D₂ ).

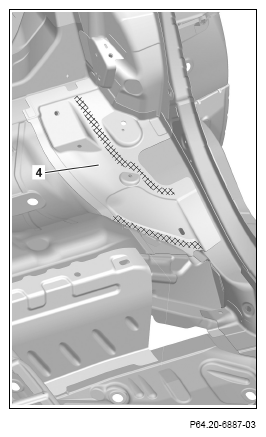

12. Heat cover (4) in the cross-hatched areas.



    Cross-hatched areas are bonded with adhesive.

13. Remove cover (4).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

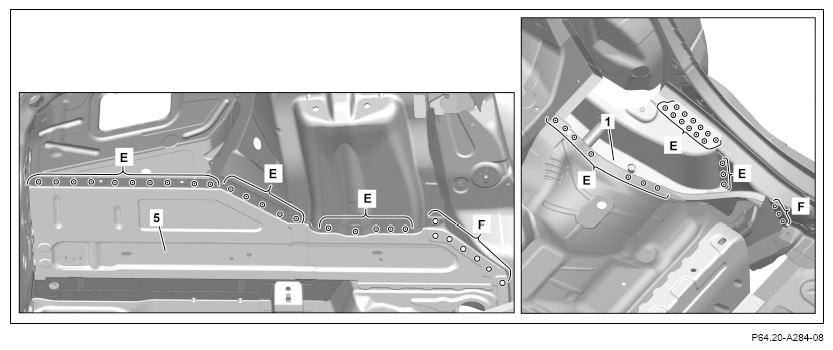

14. Expose spot welds at cover (5) and cut off (areas E).
15. Expose spot welds at rear longitudinal member (1) and cut off from underneath (areas E).
16. Expose spot welds at rear longitudinal member (1) and drill out with Ø 6.5 mm (areas F).
17. Expose spot welds at cover (5) and drill out with Ø 6.5 mm (areas F).

    Courtesy of MERCEDES-BENZ USA

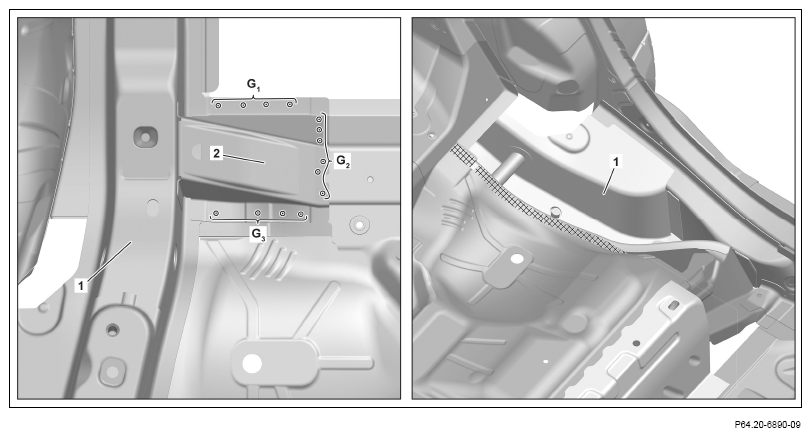

18. Expose spot welds at connection (2) and cut off (areas G₁ , G₂ and G₃ ).
19. Heat rear longitudinal member (1) in cross-hatched area.



    Cross-hatched area is bonded.

20. Remove rear longitudinal member (1) with connection (2).

    Courtesy of MERCEDES-BENZ USA

21. Grind mating surfaces down to bare metal in cross-hatched areas.
22. Remove grinding dust and drill chips.

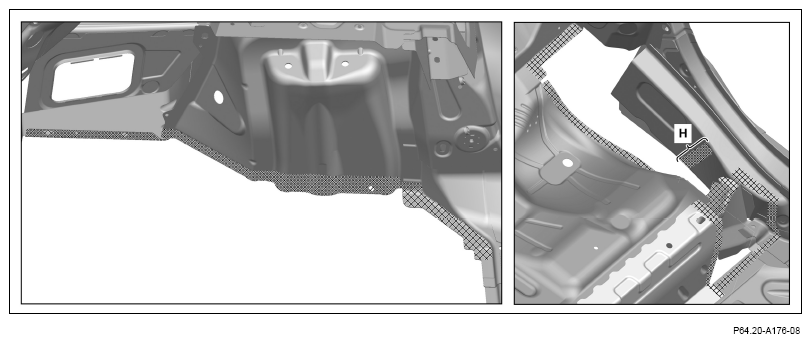

23. Apply zinc dust paint to the mating surfaces onto connecting flanges that are no longer accessible after installing side roof paneling.

    Do not coat bonding surfaces with zinc dust paint (area H).

    Otherwise adhesion problems can occur.



    Observe pretreatment of bonding surfaces.

24. Grind mating surfaces down to bare metal in cross-hatched areas.
25. Remove grinding dust.

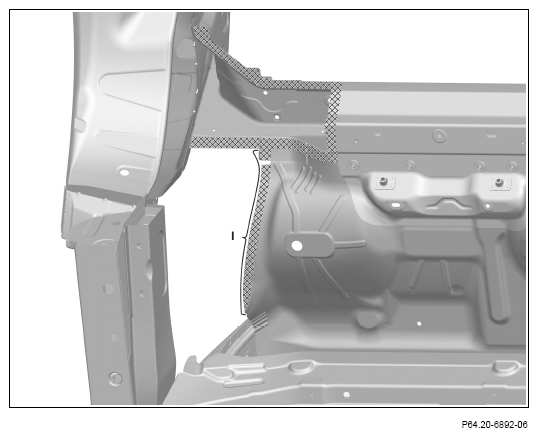

26. Apply zinc dust paint to the mating surfaces onto connecting flanges that are no longer accessible after installing side roof paneling.

    Do not coat bonding surfaces with zinc dust paint (area I).

    Otherwise adhesion problems can occur.



    Observe pretreatment of bonding surfaces.

Courtesy of MERCEDES-BENZ USA
