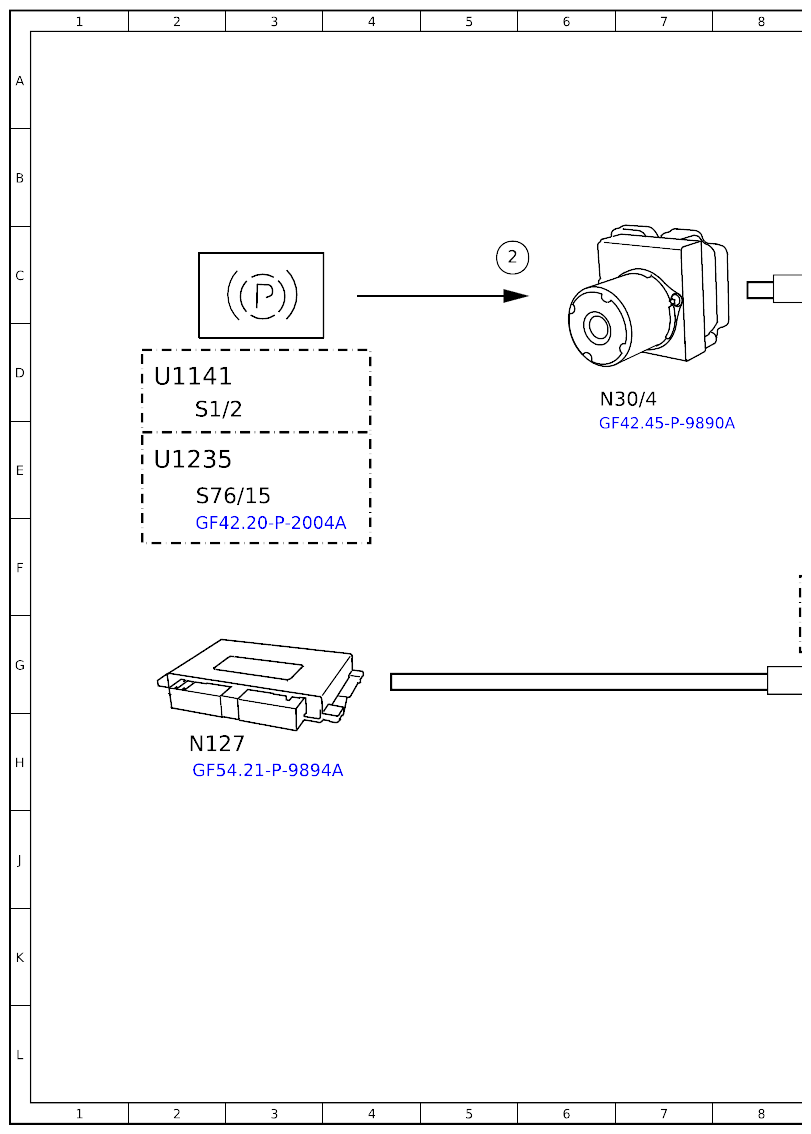

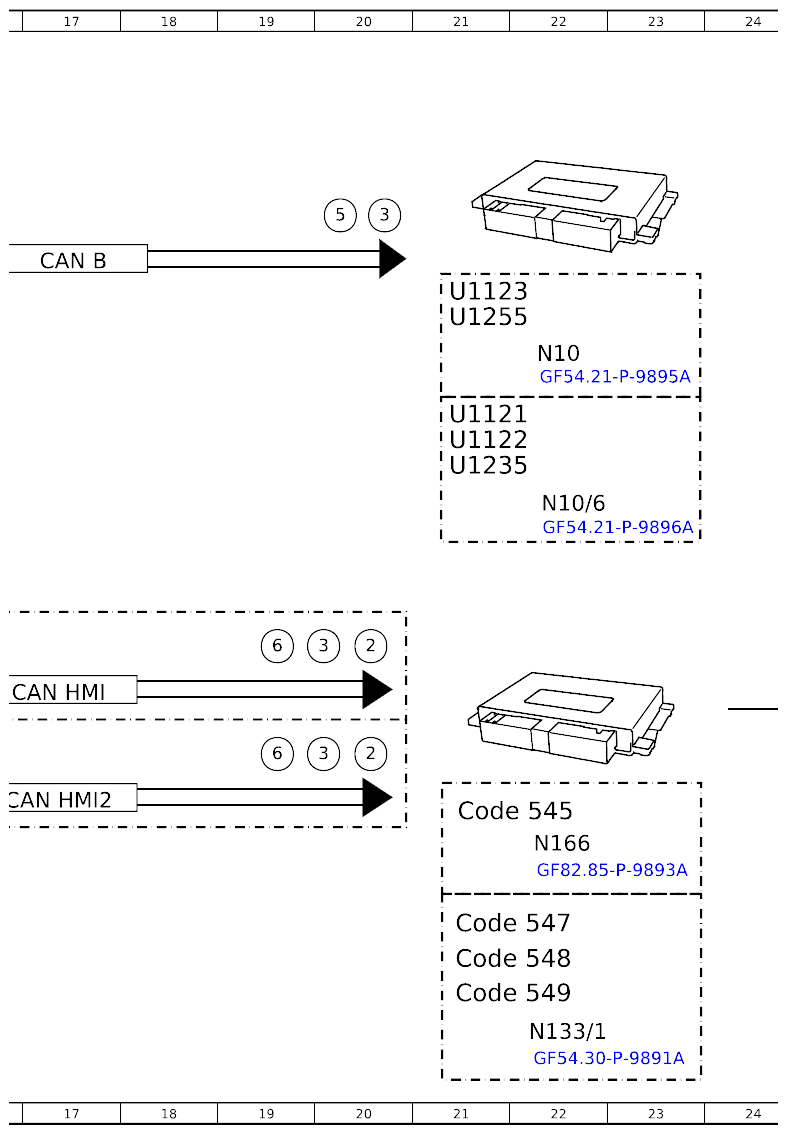

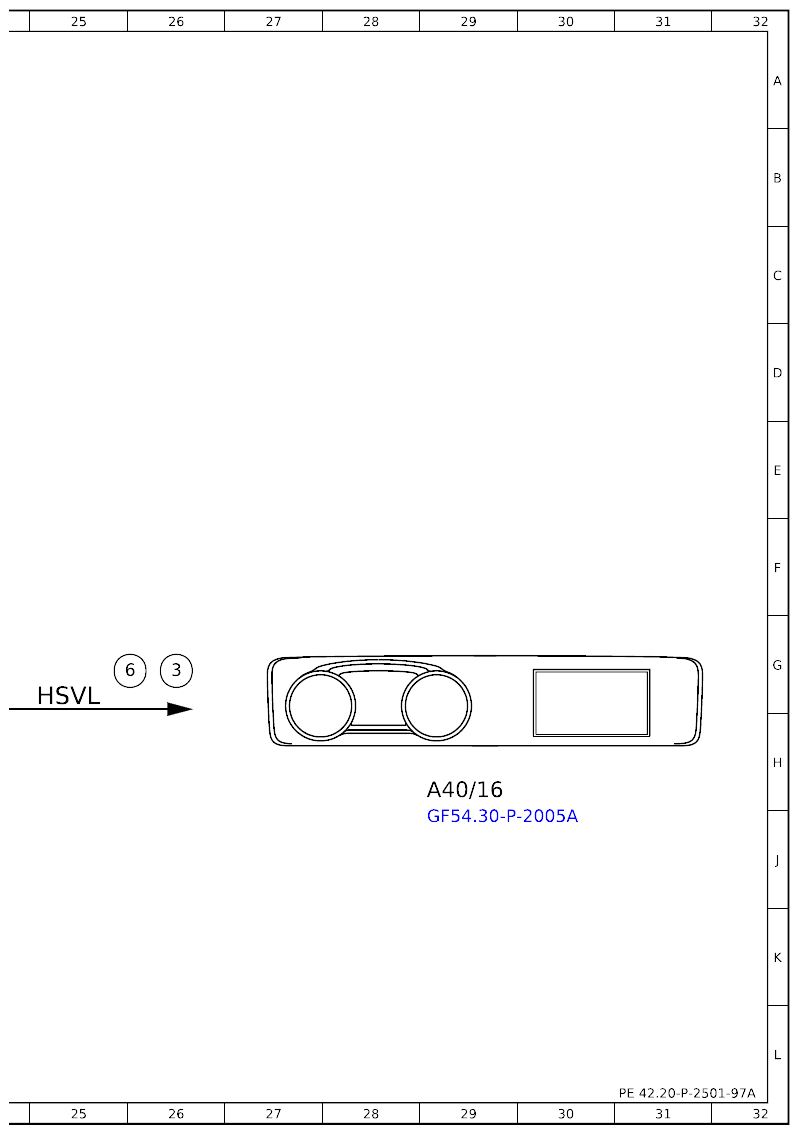

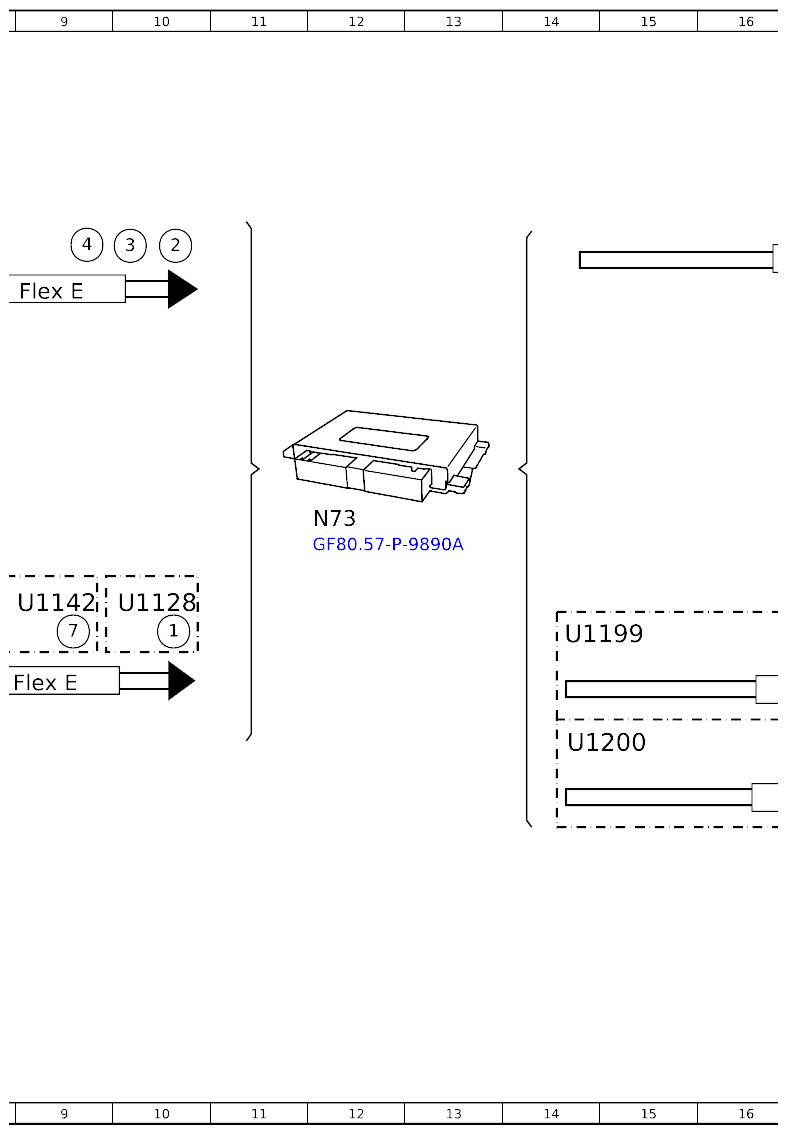

Function Schematic For Electric Parking Brake Emergency Braking - PE42.20-P-2501-97A
Model 118, 167, 177, 243, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| A40/16 | Head unit/instrument cluster display cluster | 29H |
| Code 545 | Connect 5 (NTG6) | 21J |
| Code 547 | Connect 20 Entry (NTG6) | 21K |
| Code 548 | Connect 20 MID (NTG6) | 21K |
| Code 549 | Connect 20 HIGH (NTG6) | 21K |
| HSVL | High-speed video link | 25G |
| N10 | Central control module | 22D |
| N10/6 | Front SAM control unit | 22E |
| N30/4 | Electronic Stability Program (ESP®) control unit | 7D |
| N73 | EIS [EZS] control unit | 12F |
| N127 | Drivetrain control unit | 2H |
| N133/1 | Instrument cluster control unit | 22L |
| N166 | Head unit/instrument cluster control unit | 22J |
| S1/2 | Exterior lights and electric parking brake switch group | 2D |
| S76/15 | Electric parking brake switch | 2E |
| U1121 | Valid for model 167 | 21E |
| U1122 | Valid for model 293 | 21E |
| U1123 | Valid for model 118, 177, 247 | 21C |
| U1128 | Valid for combustion engine | 10F |
| U1141 | Valid except model 213, 238, 257, 290 | 2D |
| U1142 | Valid for electric vehicle | 9F |
| U1199 | Valid for vehicles up to facelift | 14G |
| U1200 | Valid for vehicles as of facelift | 14H |
| U1235 | Valid for model 213, 238, 257, 290 | 2E |
| U1235 | Valid for model 213, 238, 257, 290 | 21E |
| U1255 | Valid for model 243 | 21D |
| CAN B | Interior CAN | 17C |
| CAN HMI | User interface CAN | 17G |
| CAN HMI2 | CAN 2 for user interface | 17H |
| Flex E | Chassis FlexRay | 9C |
| Flex E | Chassis FlexRay | 9G |
| 1 | Engine running, signal | 10G |
| 2 | Electric parking brake switch, status | 10C |
| 2 | Electric parking brake switch, status | 5C |
| 2 | Electric parking brake switch, status | 20G |
| 2 | Electric parking brake switch, status | 20H |
| 3 | Emergency stop, signal | 26G |
| 3 | Emergency stop, signal | 20B |
| 3 | Emergency stop, signal | 10C |
| 3 | Emergency stop, signal | 20G |
| 3 | Emergency stop, signal | 20H |
| 4 | Wheel speed, signal | 9C |
| 5 | Brake lights, request | 20B |
| 6 | Instrument cluster, message | 25G |
| 6 | Instrument cluster, message | 19G |
| 6 | Instrument cluster, message | 19H |
| 7 | Electric machine, status | 9G |
