Bottom Rear Center Section Prepare For Installation - Ar64.20-P-1000-07MFC
Model 118
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The superordinate service document as well as the safety information in the service document must be observed.

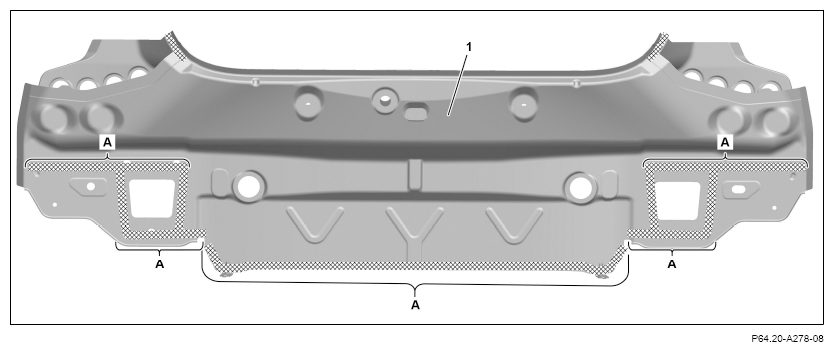

- Grind mating surfaces on rear center section (1) down to bare metal in crosshatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust.
- Apply zinc dust paint to insides of spot weld flanges.
Do not coat bonding surfaces with zinc dust paint (areas A).
Otherwise adhesion problems can occur.
Observe pretreatment of bonding surfaces.
