Remove/Install Electric Steering Lock (ELV) - AR46.10-P-0920MFA

Model 118, 177, 247

with code 426 (Automatic dual-clutch transmission, 8-speed)

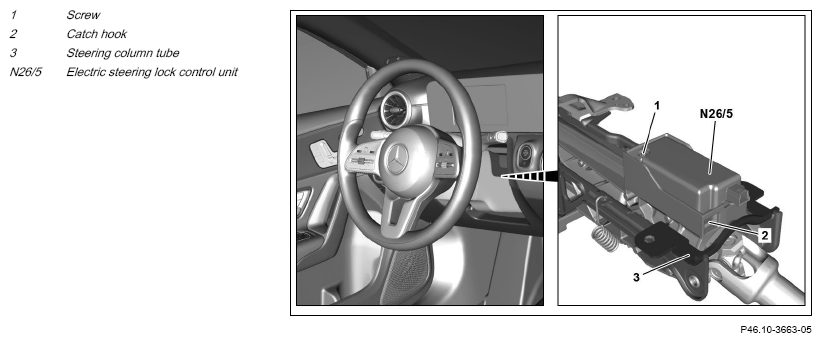

Fig 1: Electric Steering Lock (ELV) Components Location - Model 118 With Code 426

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Perform commissioning of electric steering lock control unit (N26/5).	If the electric steering lock control unit (N26/5) is replaced.
			AD00.00-P-2000-06MFA
2	Switch off ignition.	Model 118, 177, 247 with code 426 (Automatic dual-clutch transmission, 8-speed) with code 889 (KEYLESS-GO) The transmitter key must remain in the vehicle, otherwise the steering lock is locked and cannot be removed.
3	Remove steering column tube (3).		AR46.10-P-0400MFA
4	Remove screw (1).	Bolt, steering lock control unit to steering column tube	*BA46.10-P-1002-03I
5	Operate catch hook (2) and remove electric steering lock control unit (N26/5) from steering column tube (3).
6	Install in the reverse order.
