Antenna System, Detailed Information - GF82.62-P-0020C
Model 118.3, 177.1/9
Overview
This document contains information on:
- General
- Function
- Telephone antennas connection
- Emergency call system antennas connection
- GPS antenna connection
- Rear window antennas connection
- Windshield antennas connection

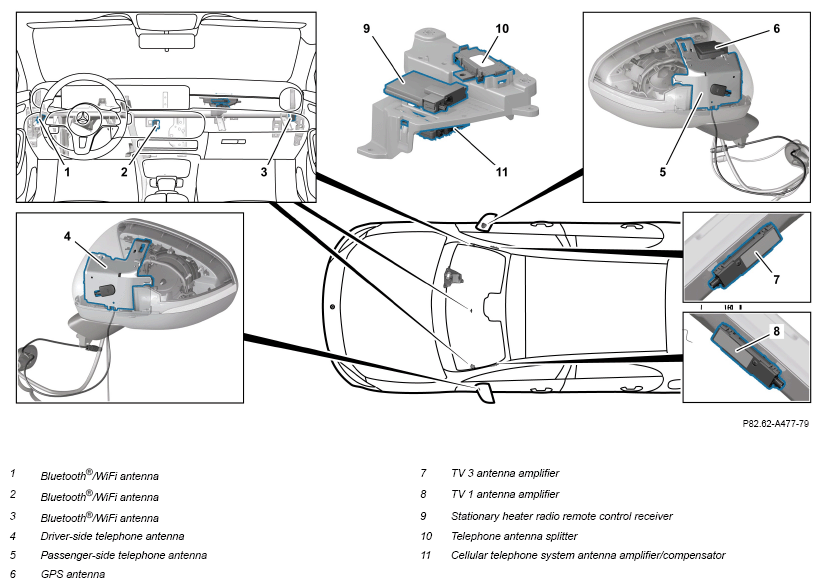

Overview of system components, shown on model 177
Overview of system components, shown on model 177
Overview of system components, shown on model 177
Overview of system components, shown on model 177

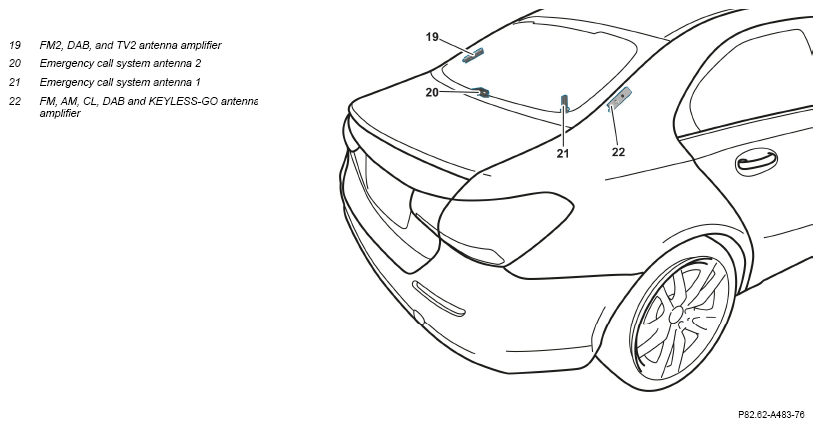

Antennas with function, installation location and equipment requirements
| Antenna | Function | Item | SA code |
|---|---|---|---|
| Driver's side telephone antenna (4) | Telephone, stationary heater | Driver-side outside mirror | B24 (Remote control for auxiliary heating)/899 (Multifunction telephony) |
| Front passenger side telephone antenna (5) | Telephone, stationary heater | Passenger-side outside mirror | B24 (Remote control for auxiliary heating)/899 (Multifunction telephony) |
| Emergency call system antenna 1 (21) | Emergency call | Under rear shelf, centrally, in rear passenger compartment seat backrest | 362 (HERMES - LTE communication module) |
| Emergency call system antenna 2 (20) | Emergency call | Under rear shelf, left of center, near lower edge of rear window | 362 (HERMES - LTE communication module) |
| GPS antenna (6) | Navigation | Passenger-side outside mirror | 355 (Extended MBUX functions)/362 (HERMES - LTE communication module) |

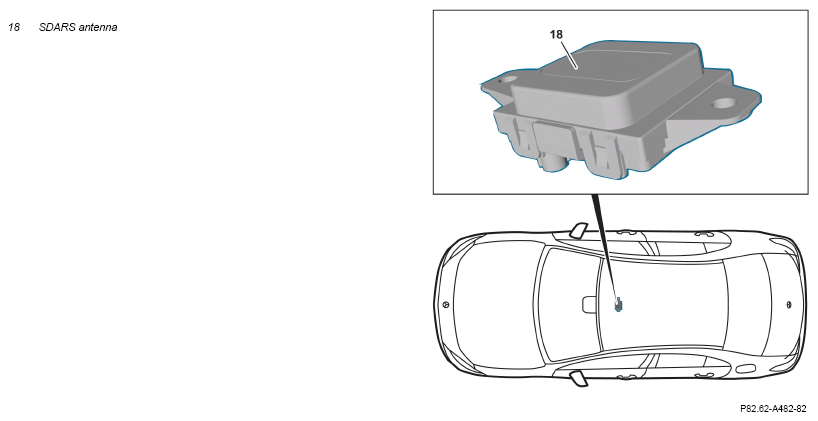

| SDARS antenna (18) | Radio mode | Center front on the roof | 536 (Complete Sirius satellite radio system) |

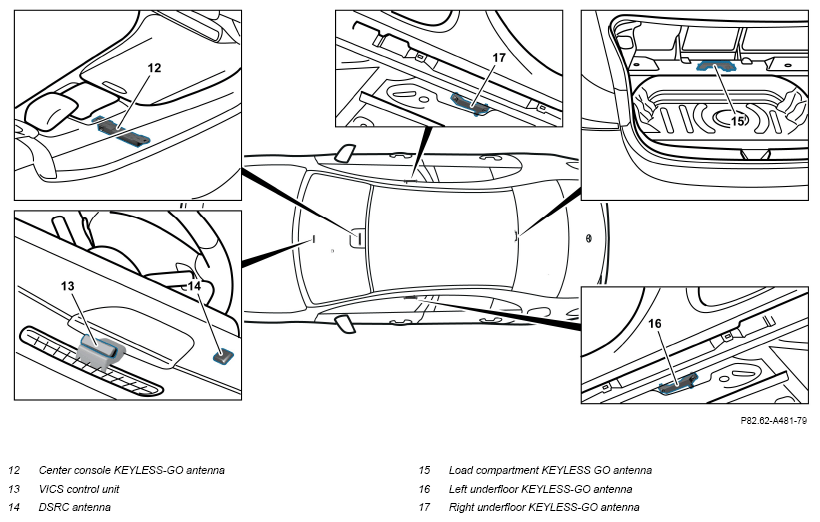

| Left underbody KEYLESS-GO antenna (16) | KEYLESS-GO | Underbody in area of left B-pillar | 889 (KEYLESS-GO) |
| Right underbody KEYLESS-GO antenna (17) | KEYLESS-GO | Underbody in area of right B-pillar | 889 (KEYLESS-GO) |
| Center console KEYLESS-GO antenna (12) | KEYLESS-GO | Center console | 889 (KEYLESS-GO) |
| Load compartment KEYLESS-GO antenna (15) | KEYLESS-GO | Rear crossmember, in front of load compartment well | 889 (KEYLESS-GO) |
| VICS control unit (13) | Navigation | Instrument panel center | 498 (Japan version) |
| DSRC antenna (14) | Toll system | Instrument panel center | 498 (Japan version)/835 (South Korea version) |
| Bluetooth®/Wi-Fi antenna (1) | Telephone, media mode, internet | Driver's side cockpit crossmember | - |
| Bluetooth®/Wi-Fi antenna (3) | Telephone, media mode, internet | Front passenger side cockpit crossmember | 548 (Connect 20 MID (NTG6))/549 (Connect 20 High (NTG6)) |
| Bluetooth®/Wi-Fi antenna (2) | Telephone, media mode, internet | Instrument panel center | 549 (Connect 20 HIGH (NTG6)) |
| Rear window antenna | Radio mode, TV mode, KEYLESS-GO, central locking system | Rear window | - |
| Windshield antenna | TV mode | Windshield | 865 (Digital TV tuner) |
Receivers, antenna splitters and amplifiers with function, installation location and equipment requirements
| Receiver, antenna splitter, amplifier, compensator | Function | Item | SA code |
|---|---|---|---|
| Stationary heater radio remote control receiver (9) | Stationary heater | Instrument panel center | B24 (Remote control for auxiliary heating) |
| Telephone antenna splitter (10) | Telephone, stationary heater | Instrument panel center | B24 (Remote control for auxiliary heating) + 899 (Multifunction telephony) |
| Mobile radio antenna amplifier/compensator (11) | Telephone | Instrument panel center | 899 (Multifunction telephony) |
| TV 1 antenna amplifier (8) | TV mode | Left A-pillar | 498 (Japan version) + 865 (Digital TV tuner) |
| TV 3 antenna amplifier (7) | TV mode | Right A-pillar | 498 (Japan version) + 865 (Digital TV tuner) |
| FM, AM, CL, DAB and KEYLESS-GO antenna amplifier (22) | Radio mode, KEYLESS-GO, central locking system | Right C-pillar | - |
| FM2, DAB and TV2 antenna amplifier (19) | Radio mode, TV mode | Left C-pillar | - |
General
The antennas may be located at different positions around the vehicle depending on the function and task involved.
Function
The antenna's connection to the respective control units, antenna splitters, amplifiers and receivers will vary depending on the function, equipment and body form.
Telephone antennas connection
The driver's side telephone antenna (4) and front passenger side telephone antenna (5) are connected to the telephone antenna splitter (10). Depending on the vehicle equipment, the antenna connection may differ:
- Vehicles with code 899 (Multifunction telephony) or
with code B24 (Remote control for auxiliary heating):
Directly to the mobile phone cradle control unit or to the stationary heater remote control receiver (9) via a simple telephone antenna splitter (10)
- Vehicles with code 899 (Multifunction telephony) and with code B24 (Remote control for auxiliary heating):
To the mobile phone cradle control unit and to the stationary heater radio remote control receiver (9) via a 2-way telephone antenna splitter (10)
On vehicles with code 899 (Multifunction telephony), the antenna signal to the mobile phone cradle control unit is amplified by the mobile radio antenna amplifier/compensator (11).
Emergency call system antennas connection
Emergency call system antenna 1 (21) and emergency call system antenna 2 (20) are directly connected to the telematics services control unit.
GPS antenna connection
Depending on the vehicle equipment, the following GPS antenna (6) connections are possible:
- Vehicles with code 362 (HERMES - LTE communication module) without
code 355 (Extended MBUX functions):
Directly to the telematics services control unit
- Vehicles with code 362 (HERMES - LTE communication module) with
code 355 (Extended MBUX functions):
The GPS antenna (6) signal is forwarded to the multimedia system control by a GPS splitter integrated into the telematics services control unit.
- Vehicles without code 362 (HERMES - LTE communication module) but
with code 355 (Extended MBUX functions):
Directly to multimedia system control
Rear window antennas connection
The antennas in the rear window are connected via 2 antenna amplifiers:
- FM, AM, CL, DAB and KEYLESS-GO antenna amplifier (22)
- FM2, DAB and TV2 antenna amplifier (19)
Windshield antennas connection
The antennas in the windshield are connected via 2 antenna amplifiers:
- TV 1 antenna amplifier (8)
- TV 3 antenna amplifier (7)
