Remove/Install Crossmember Under Instrument Panel - AR68.10-P-1120MFA
Model 118, 177, 247
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove instrument panel. | AR68.10-P-1000MFA | |
| 2 | Remove electronic ignition lock control unit (N73). | AR54.21-P-0038MFA | |
| 3 | Remove cover for air/water duct. | Model 247 | AR83.10-P-1411MFB |
| Model 118, 177 | AR83.10-P-1411MFA | ||
| 4 | Unscrew screw (8). | *BA68.10-P-1002-02D | |
| 5 | Remove steering column tube. | AR46.10-P-0400MFA | |
| 6 | Remove head unit (A26/17). | AR82.85-P-1101MFA | |
| 7 | Remove ambient lighting control unit (N162) with bracket. | Model 118, 177, 247 with code 877 (Ambient lighting) | AR82.20-P-0001MFA |
| 8 | Remove Bluetooth®/Wi-Fi antenna (A2/161) on left of instrument panel. | Model 118, 177 | AR82.85-P-0012MFA |
| Model 247 | AR82.85-P-0012MFB | ||
| 9 | Remove Bluetooth®/Wi-Fi antenna (A2/162) on right of instrument panel. | Model 118, 177, 247 with code 521 (Connect 20 Mid (NTG7)) Model 118, 177, 247 with code 525 (Connect 20 High (NTG7)) Model 118, 177, 247 with code 534 (Connect 20 Premium (NTG7)) Model 118, 177, 247 with code 547 (Connect 20 Entry (NTG6)) Model 118, 177, 247 with code 548 (Connect 20 MID (NTG6)) Model 118, 177, 247 with code 549 (Connect 20 HIGH (NTG6)) |
AR82.85-P-0014MFA |
| 10 | Remove Bluetooth®/Wi-Fi antenna (A2/91) in center of instrument panel. | Model 247 with code 521 (Connect 20 Mid (NTG7)) Model 247 with code 525 (Connect 20 High (NTG7)) Model 247 with code 534 (Connect 20 Premium (NTG7)) Model 247 with code 549 (Connect 20 HIGH (NTG6)) |
AR82.85-P-0013MFB |
| Model 118, 177 with code 521 (Connect 20 Mid (NTG7)) Model 118, 177 with code 525 (Connect 20 High (NTG7)) Model 118, 177 with code 534 (Connect 20 Premium (NTG7)) Model 118, 177 with code 549 (Connect 20 HIGH (NTG6)) |
AR82.85-P-0013MFA | ||
| 11 | Remove HERMES control unit (N112/9). | Model 247 with code 362 (HERMES communications module LTE) | AR82.95-P-0019MFB |
| Model 118, 177 with code 362 (HERMES communications module LTE) | AR82.95-P-0019MFA | ||
| 12 | Remove screws (2). | ||

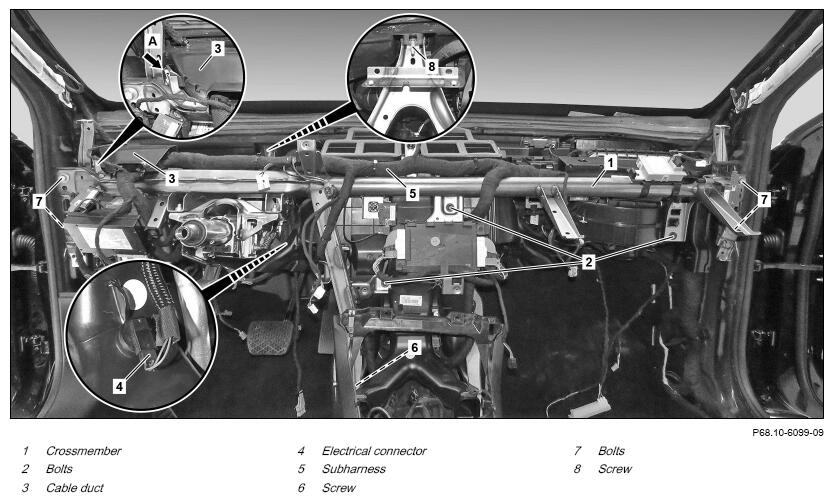

| 13 | Unclip cable duct (3) from crossmember (1) (arrow A) and lift from crossmember (1). | Fig 1 | |
| 14 | Release and disconnect electrical connector (4) and expose electrical subharness (5). | ||
| 15 | Unclip electrical subharness (5) from crossmember (1) and expose. | ||
| 16 | Press floor covering to side until screw (6) can be accessed. | ||
| 17 | Unscrew screw (6). | *BA68.10-P-1003-02D | |
| 18 | Remove screws (7). | *BA68.10-P-1001-02D | |
| 19 | Expose crossmember (1) from electric lines and cable brackets and lead out. | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 20 | Install in the reverse order. |
CROSSMEMBER BELOW INSTRUMENT PANEL
| Number | Designation | Model 118 | Model 177, 247 | |
|---|---|---|---|---|
| BA68.10-P-1001-02D | Screw/bolt, crossmember to A-pillar | Nm | 25 | 25 |
CROSSMEMBER BELOW INSTRUMENT PANEL
| Number | Designation | Model 118 | Model 177, 247 | |
|---|---|---|---|---|
| BA68.10-P-1002-02D | Screw/bolt, crossmember to firewall below windshield | Nm | 25 | 25 |
CROSSMEMBER BELOW INSTRUMENT PANEL
| Number | Designation | Model 118 | Model 177, 247 | |
|---|---|---|---|---|
| BA68.10-P-1003-02D | Screw/bolt, crossmember strut to transmission tunnel | Nm | 25 | 25 |
