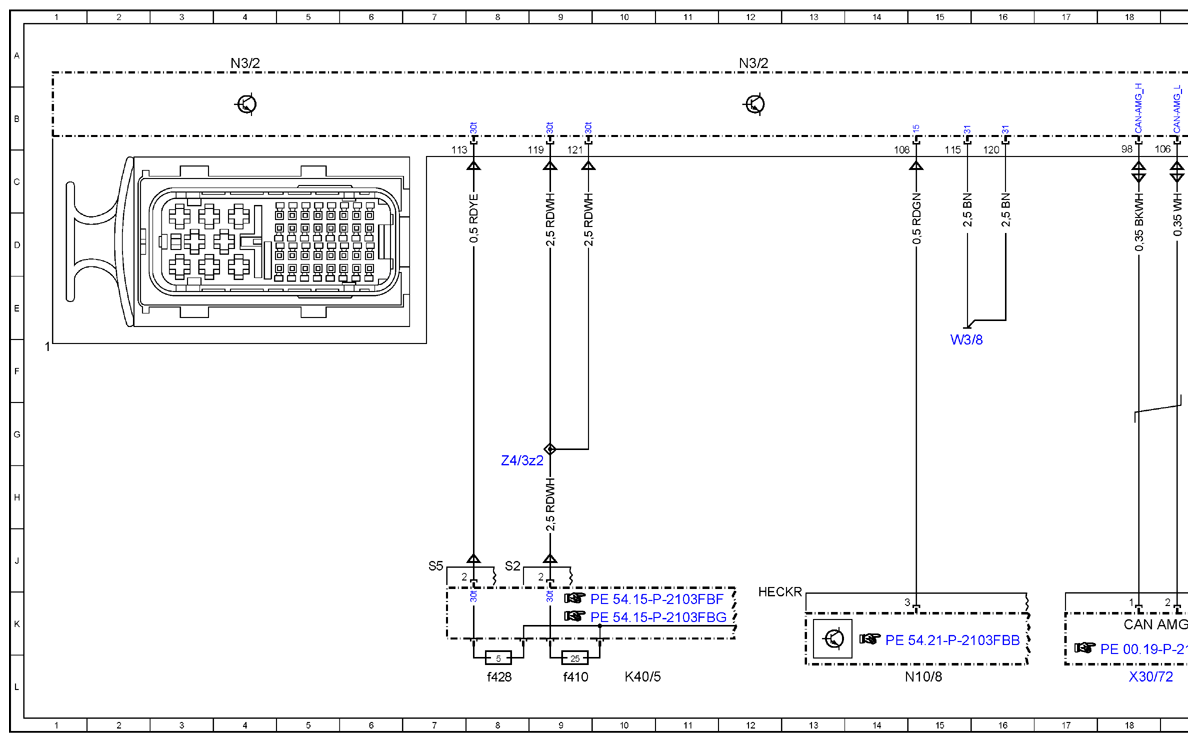

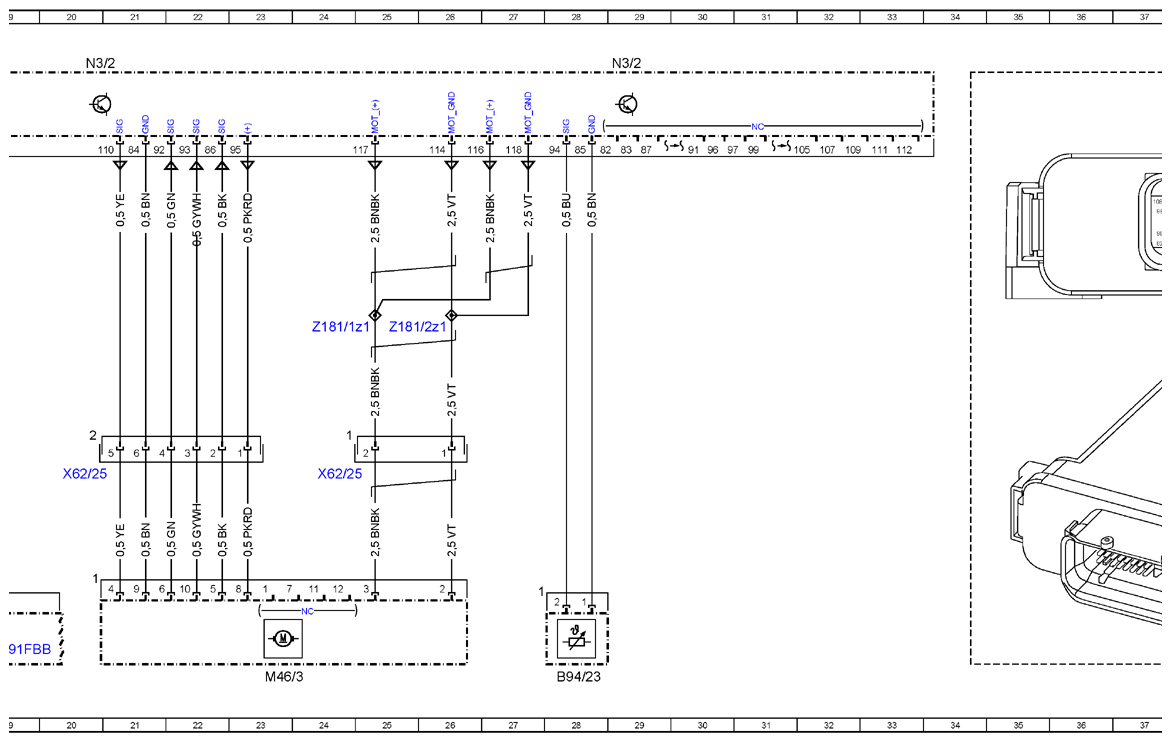

Differential Lock Control Unit Wiring Diagram - PE27.19-P-2107-97FBC
Model 205 as of model year 2019 Control unit N3/2
| Code: | Designation: | Position: |
|---|---|---|

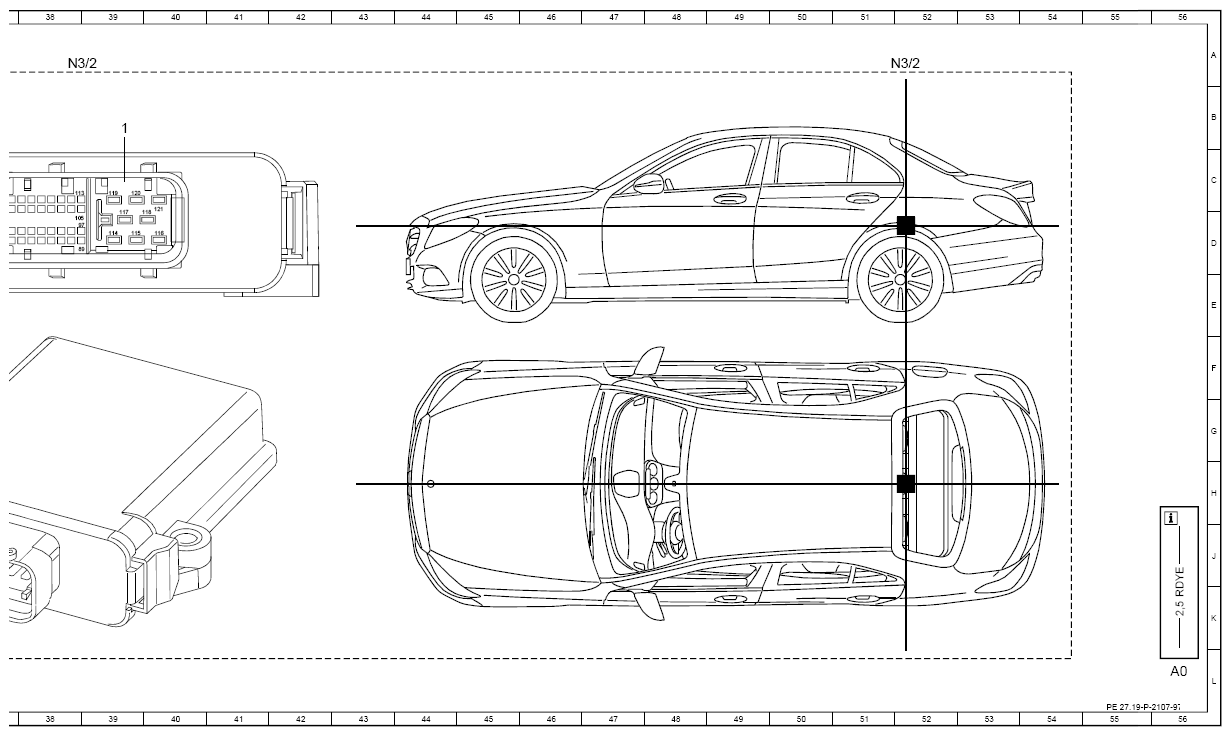

| A0 | Use of wiring diagrams | 56L |
| B94/23 | Electric differential lock temperature sensor | 28L |
| CAN AMG | AMG CAN | 18K |
| K40/5 | Rear fuse and relay module | 10L |
| K40/5f410 | Fuse 410 | 9L |
| K40/5f428 | Fuse 428 | 8L |
| M46/3 | Differential lock actuator | 23L |
| N10/8 | Rear SAM control unit | 15L |
| N3/2 | Electronic differential control unit | 4A |
| N3/2 | Electronic differential control unit | 12A |
| N3/2 | Electronic differential control unit | 20A |
| N3/2 | Electronic differential control unit | 29A |
| N3/2 | Electronic differential control unit | 38A |
| N3/2 | Electronic differential control unit | 52A |
| W3/8 | Right rear wheel well ground point | 15F |
| X30/72 | AMG CAN potential distributor electrical connector | 18L |
| X62/25 | Differential lock electrical connector | 24H |
| X62/25 | Differential lock electrical connector | 20H |
| Z181/1z1 | AMG electric differential connector sleeve (+) | 24E |
| Z181/2z1 | AMG electric differential connector sleeve (-) | 25E |
| Z4/3z2 | Tml. 30 connector sleeve | 8G |
