Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LWV

Model205.086/087/286/287 with code 835 (South Korea version)

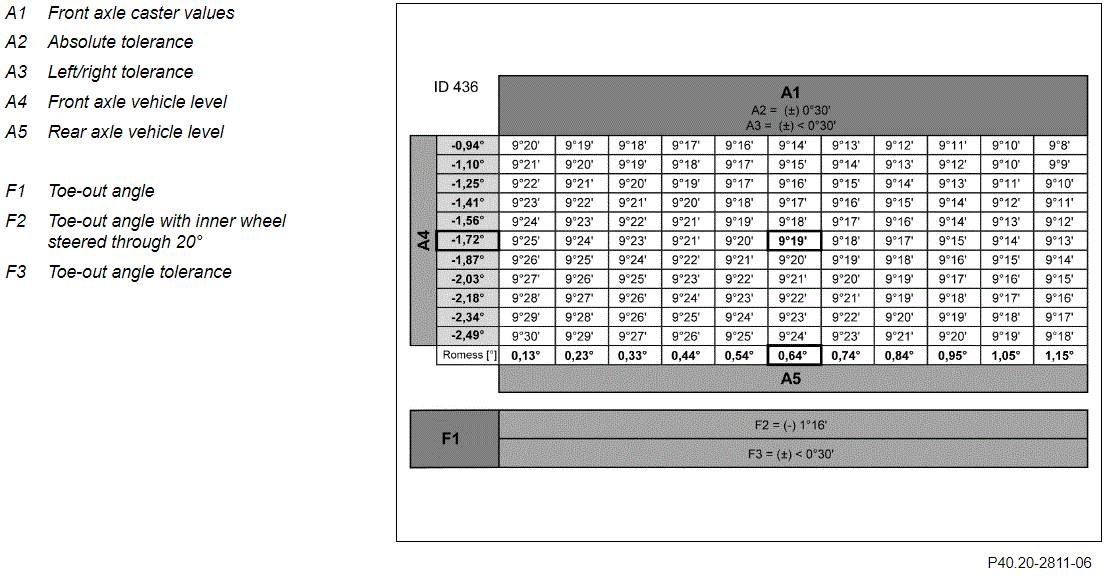

G00634231

Courtesy of MERCEDES-BENZ USA

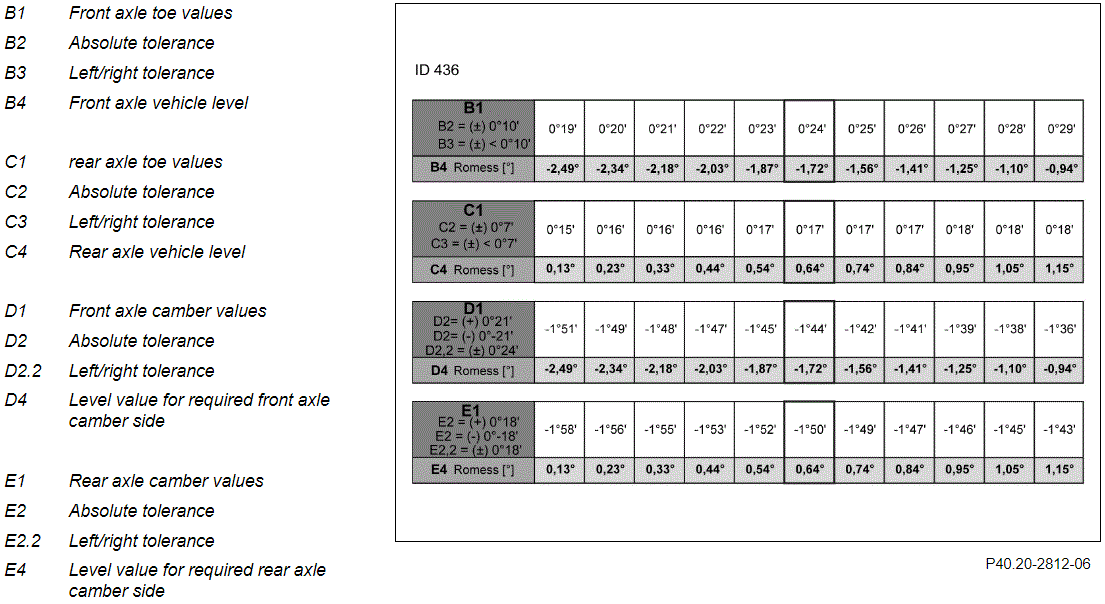

G00634232

Courtesy of MERCEDES-BENZ USA
