Home >> Mercedes Benz >> 2021 >> C63 AMG 2D Convertible >> Repair and Diagnosis >> Suspension >> Wheels & Tire System >> Wheels, Chassis Alignment Check -- 205 Chassis >> Testing & Repair >> Check Suspension Data, Assign Actual Value To Table >> Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LWU

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LWU

Model205.086/087/286/287 except code 835 (South Korea version)

Modification Notes

11.09.2017 Values updated ID 366

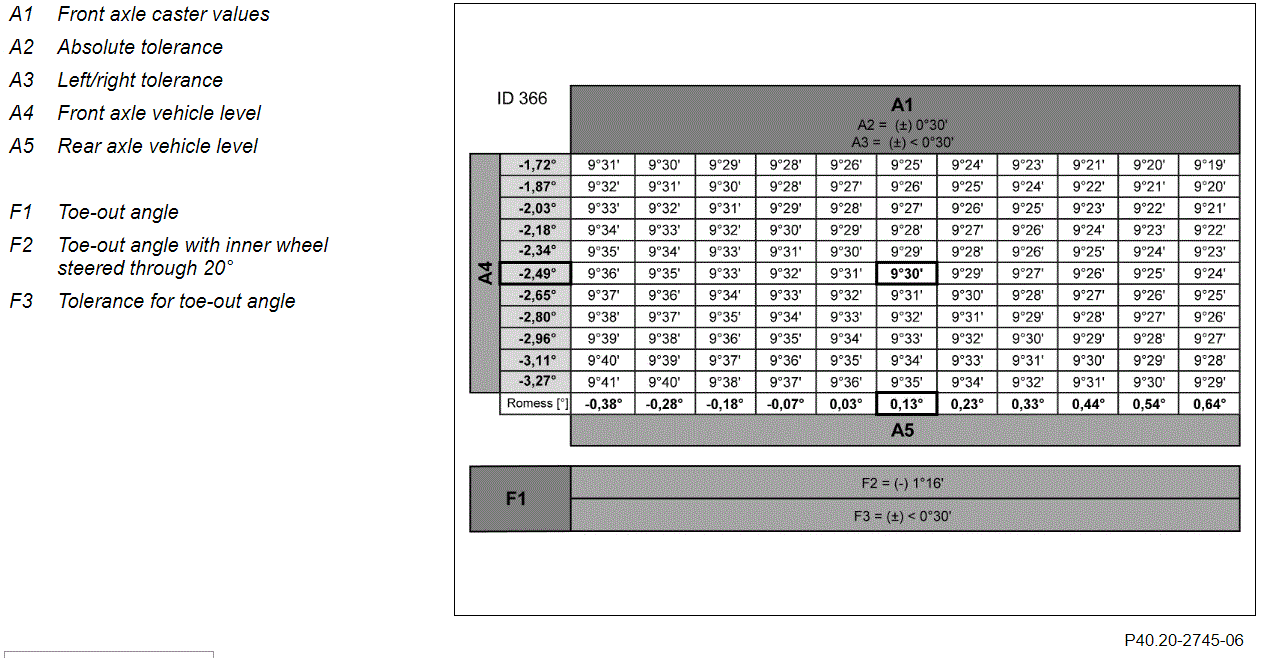

G00634229Courtesy of MERCEDES-BENZ USA

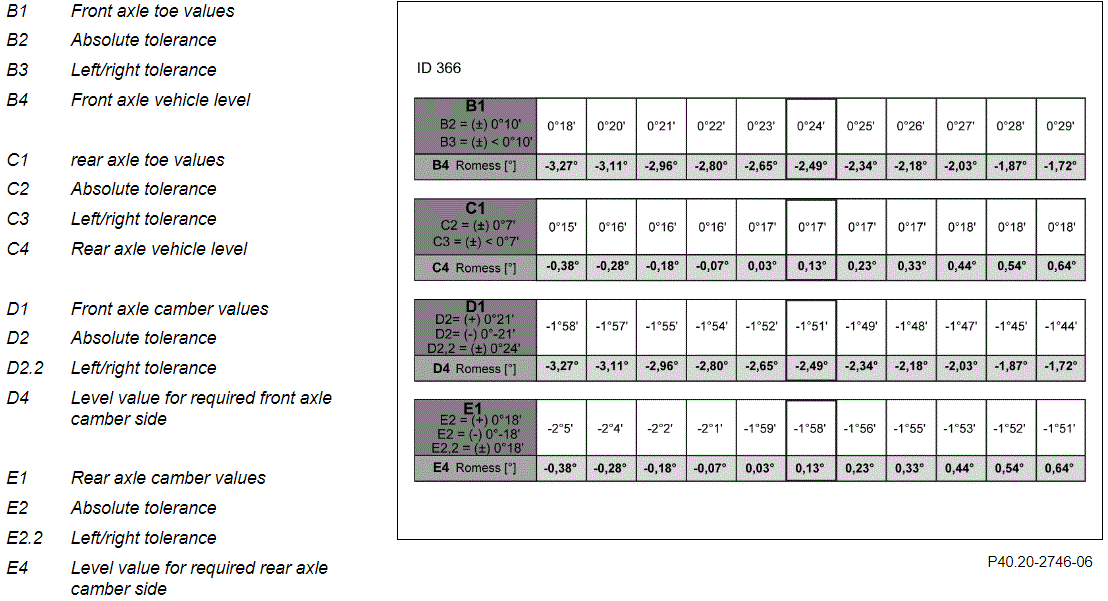

G00634230Courtesy of MERCEDES-BENZ USA
