Remove/Install Rear Elastomer Bearing Of Rear Axle Differential Suspension - AR35.10-P-0050-02LW

Model 205

Model 213

Model 238

Model 253

Fig 1: Identifying Extraction And Insertion Tool (204 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Installation Tool (221 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hydraulic Cylinder (001 589 60 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hydraulic Hose - Complete (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 6: Rear Elastomer Bearing Of Rear Axle Differential Suspension Component Location - Model 205

Courtesy of MERCEDES-BENZ USA

Remove

Required special tools:

Counterholder (02) 221 589 01 43 02
Hydraulic cylinder (07) 001 589 60 33 00
Hydraulic hose (023) 652 589 00 33 23
Hand pump (021) 652 589 00 33 21

The following tools are required from the extraction and insertion tool 204 589 01 43 00:

Thrust piece (01) 204 589 01 43 01
Thrust piece (03) 204 589 01 43 03
Spindle (04) 204 589 01 43 04

The following tool is required from the extraction and insertion tool 221 589 01 43 00:

Attach hydraulic cylinder (07) with hydraulic hose (023) at hand pump (021).

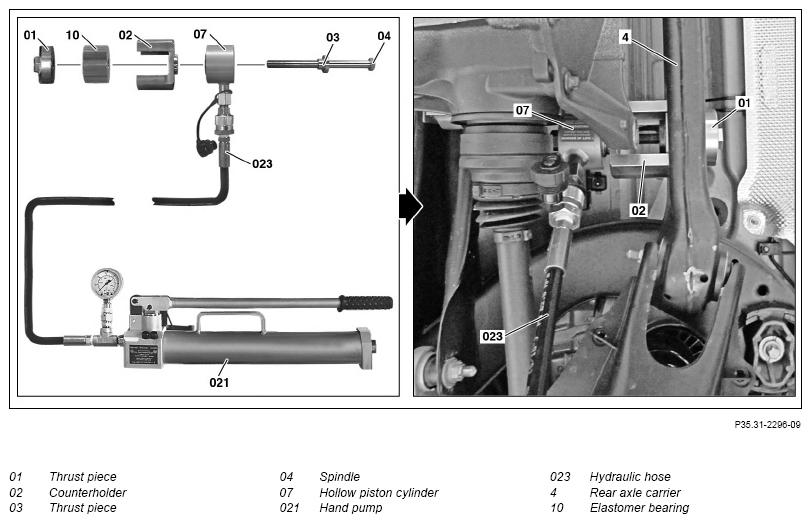

Position spindle (04), thrust piece (03), hydraulic cylinder (07), 121 counterholder (02) and thrust piece (01) at rear axle carrier (4) and elastomer bearing (10).
Press elastomer bearing (10) out of rear axle carrier (4).
Carefully screw spindle (04) into thrust piece (01).

Otherwise the spare wheel well may be damaged.

If the hydraulic cylinder (07) has reached its maximum stroke, release the pressure at the hand pump (021) and screw the spindle (04) further into the thrust piece (01), then repeat the press-out procedure.

Courtesy of MERCEDES-BENZ USA

Install

Required special tools:
- Hydraulic cylinder (07) 001 589 60 33 00
- Hydraulic hose (023) 652 589 00 33 23
- Hand pump (021) 652 589 00 33 21
The following tools are required from the extraction and insertion tool 204 589 01 43 00:
- Thrust piece (03) 204 589 01 43 03
- Spindle (04) 204 589 01 43 04
- End stop (06) 204 589 01 43 02
The following tool is required from the extraction and insertion tool 221 589 01 43 00:
- Thrust piece (05) 221 589 01 43 05

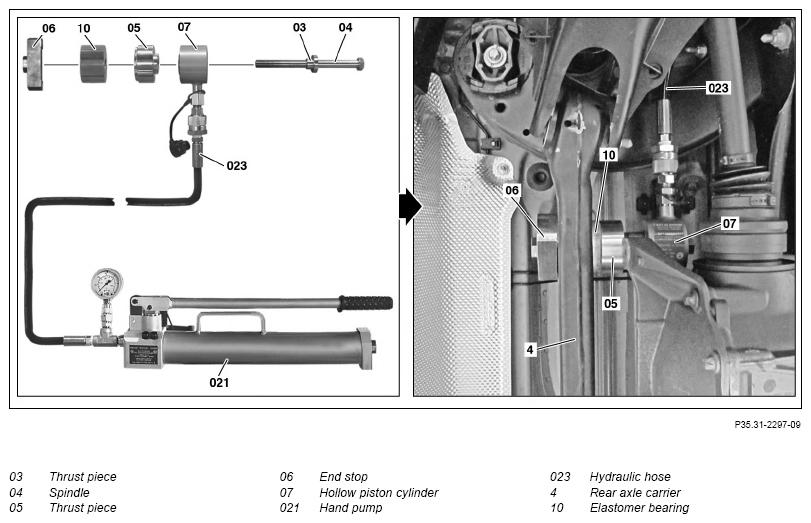

Position spindle (04), thrust piece (03), hydraulic cylinder (07), thrust piece (05), elastomer bearing (10), and end stop (06) at rear axle carrier (4).
Press elastomer bearing (10) into rear axle carrier (4).
Carefully screw spindle (04) into end stop (06).

Otherwise the spare wheel well may be damaged.

If the hydraulic cylinder (07) has reached its maximum stroke, release the pressure at the hand pump (021) and screw spindle (04) further into the end stop (06), then repeat the press-in procedure. The shape of the end stop (06) determines the end position of the elastomer bearing (10) in the rear axle carrier (4).
Remove special tools.
