Remove/Install Front Elastomer Bearing Of Rear Axle Suspension - AR35.10-P-0040-02LW
Model 204.### #A as of 937889
Model 204.### #G as of 1/6/14
Model 204.### #L as of 073447 with code 700 (Vehicle production location China)
Model 204.### #L as of 325091 except code 700 (Vehicle production location China)
Model 204.### #R as of 11/29/13
Model 204.### #V as of 005869
Model 205
Model 207.### #F as of 1/17/14
Model 212.### #A as of 958869
Model 212.### #L as of 041479
Model 212.### #V as of 002863
Model 213
Model 218.### #A as of 116836
Model 231.### #F as of 1/13/14
Model 253, 293
| Notes on safety-relevant components | AH00.00-Z-0019-01A |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
Preparation
Always replace elastomer bearings as pair.
The following tool from US extraction and insertion tool is required:
spacer (08) 205 589 00 43 08
- Position
spacer (08) with the spacer plates (arrows) such that it can be engaged in the rear axle carrier (1) with almost zero clearance.
- Engage
spacer (08) with the longer side in the rear axle carrier 2 (1) in direction of travel.
The
spacer (08) must remain in the rear axle carrier (1) for removal/installation of elastomer bearing. Otherwise the rear axle carrier (1) may be damaged.
- Pry off stop plate (2) from respective elastomer bearing (3) using suitable tool.
- Mark the installation position of the respective elastomer bearing (3) on the cutout (arrow).
Remove
The following tools are required from the
extraction and insertion tool:
Thrust piece (01) 205 589 00 43 01
Counterholder (04) 205 589 00 43 04
thrust spindle (05) 205 589 00 43 05
spindle nut (06) 205 589 00 43 06
- Attach [S thrust piece (01),
counterholder (04), US thrust spindle (05) and
spindle nut (06) with the
hollow cylinder (015) and
retaining belt (014) at elastomer bearing (3).

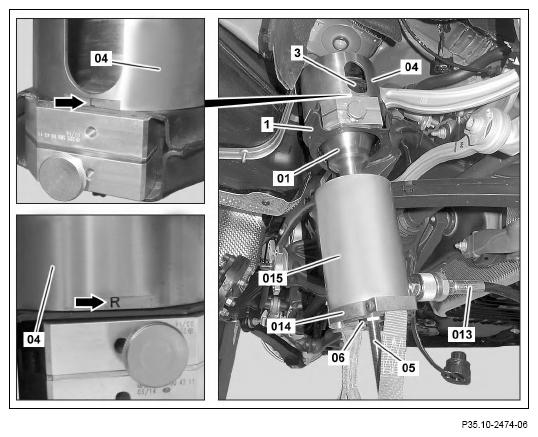

Mount
hollow cylinder (015) such that pressure piston extends upward.
Otherwise the thrust arm can get damaged.
The
counterholder (04) must be positioned such that the mark "L" or "R" (arrows) on the relevant side points to outer side of the vehicle.
- Connect the
hand pump using SI hydraulic hose (013) to
hollow cylinder (015).
- Press elastomer bearing (3) out of rear axle carrier (1).
Install
The following tools are required from the
extraction and insertion tool:
thrust piece (02) 205 589 00 43 02
counterholder (03) 205 589 00 43 03
thrust spindle (05) 205 589 00 43 05
spindle nut (06) 205 589 00 43 06
pilot bushing (07) 205 589 00 43 07
- Make true vertical marking (A) in area of cutout as bearing aid on elastomer bearing (3).
- Screw on
pilot bushing (07) on E2 thrust spindle (05) far enough until the thread excess length is sufficient for mounting the elastomer bearing (3) and the
thrust piece (02).
- Insert
thrust spindle (05) with SI pilot bushing (07) into rear axle carrier (1) from below.
- Mount elastomer bearing (3) on
thrust spindle (05) from above.
- Screw on
thrust piece (02) on [S thrust spindle (05) while aligning it with the stop plate (2).
Ensure that the studs of
thrust piece (02) lie flush with stop plate (2) (arrows).
- Align true vertical mark (A) on elastomer bearing (3) with the mark on the rear axle carrier (1).
- Coat elastomer bearing (3) with lubricant.
- Screw in
Not bushing (07) by hand until
thrust piece (02), elastomer bearing (3) and
pilot bushing (07) are clamped together.
- Slide
counterholder (03) onto
thrust spindle (05) and align using cutout towards threaded connection for thrust arm on rear axle carrier (1) (arrow).
- Slide on
hollow cylinder (015) with
retaining belt (014) onto
thrust spindle (05), screw on
spindle nut (06) and tighten by hand.
- Press elastomer bearing (3) into rear axle carrier (1).
Press elastomer bearing (3) far enough in until the edge of the elastomer bearing (3) is flush fitted to the rear axle carrier (1) (arrows).
- Remove special tools.
