Remove/Install Differential Lock Actuator Motor - AR35.40-P-7400LW

Model 205.086/087/286/287/386/387/486/487

Model 253.388/389/988/989

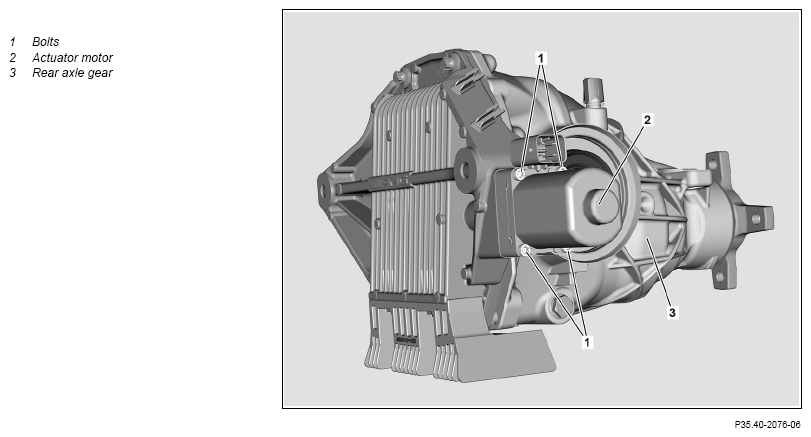

Fig 1: Differential Lock Actuator Motor Component Location - Model 205.086/087/386/387/486/487

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Remove/install
1	Raise vehicle		AR00.60-P-1002LWG
2	Clean area around actuator motor (2)	Assembly cleaner	*BR00.45-Z-1028-04A
3	Remove electrical line from actuator motor (2)
4	Unscrew screws/bolts (1) and remove actuator motor (2) in downward direction	Bolt, actuator motor for differential lock to rear axle differential	*BA35.40-P-1001-02A
5	Clean contact surface on rear axle differential (3)	Assembly cleaner	*BR00.45-Z-1028-04A
6	Install in the reverse order
	Check
7	Check and correct oil level of rear axle differential (3)	Model 205.086/087/286/287	AR35.31-P-0520-03LW
		Model 205.386/387/486/487 Model 253.388/389/988/989	AR35.31-P-0520-08MNA
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Model 205.086/087/286/287/386/387/486/487Filling capacity for rear axle differential with differential lock	*BF35.31-P-1003-01U
		Model 253.388/389/988/989Filling capacity for rear axle differential with differential lock	*BF35.31-P-1003-02B
		Oil filler screw of rear axle differential	*BA35.31-P-1002-02H
