Remove/Install Camber Strut - AR35.20-P-0110LWS

Model 205.064/086/087/264/286/287/364

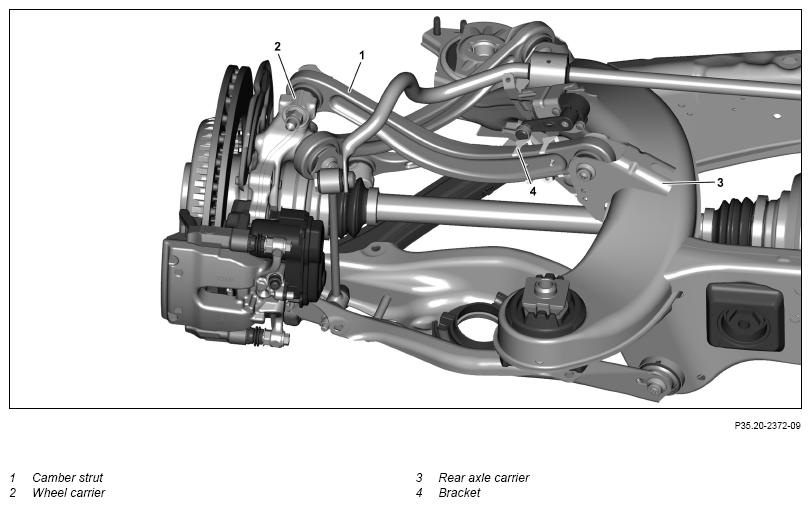

Fig 1: Camber Strut Component Location - Model 205.086/087

Courtesy of MERCEDES-BENZ USA

Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove rear axle		AR35.10-P-0010LW
2	Unclip bracket (4) of level sensor linkage and place to one side	If installed. Observe installation position and do not twist level sensor. The bracket (4) be fixed in place with a nut on the camber strut (1).
3	Detach camber strut (1) from wheel carrier (2)	Bolt, camber strut to wheel carrier	*BA35.20-P-1002-02L
		Screwdriver bit	Fig 2
4	Detach camber strut (1) from rear axle carrier (3) and remove	Bolt, camber strut to rear axle carrier	*BA35.20-P-1001-02L
		Screwdriver bit	Fig 2
	Check
5	Check camber strut (1) for condition and damage	If there are problems ↓ Replace camber strut (1).
6	Install in the reverse order

CAMBER STRUT

Number	Designation				Model 205
BA35.20-P-1001-02L	Bolt, camber strut to rear axle carrier	Rear axle carrier (aluminum)	Stage 1	Nm	80
			Stage 2	∠°	90
		Rear axle carrier (steel)	Stage 1	Nm	50
			Stage 2	∠°	90

CAMBER STRUT

Number	Designation			Model 205
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA
