Drain/Fill Oil Of Rear Axle Differential - AR35.31-P-0520-07MNA

Model 205.386/387/486/487

Model 253.388/389/988/989

CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
REFER TO BASIC KNOWLEDGE Differentiating characteristics of cast iron differential housings Model 205.386/387/486/487 except code 700 (Vehicle production location China) GF35.31-P-0002-02A
REFER TO BASIC KNOWLEDGE Differentiating characteristics of aluminum differential housings Model 205.386/387/486/487 except code 700 (Vehicle production location China)
Model 253.388/389/988/989 except code 700 (Vehicle production location China)		 GF35.31-P-0002-01A
REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 205 Model 253
BA35.31-P-1002-02H Oil filler screw of rear axle differential Nm 50 50
REAR AXLE DIFFERENTIAL HOUSING

Number Designation Model 205 Model 253
BA35.31-P-1003-02H Drain screw to rear axle differential Nm 50 50
REAR AXLE GEAR

Number Designation Model 205.086/087/286/28 7/386/387/486/487
BF35.31-P-1003-01U Filling capacity for rear axle differential with differential lock Liter 1, 2
Specification BB00.40-P-0235-61A
REAR AXLE GEAR

Number Designation Model 253.388/389/988/98 9
BF35.31-P-1003-02B Filling capacity for rear axle differential with differential lock Liter 1, 2
Specification   BB00.40-P-0235-61A
Overview of specified transmission oils   -
Approved axle gear oils   -
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
BR00.45-Z-1061-01A Sealant, Omnifit 100H (50 g) A 002 989 23 71

Drain oil

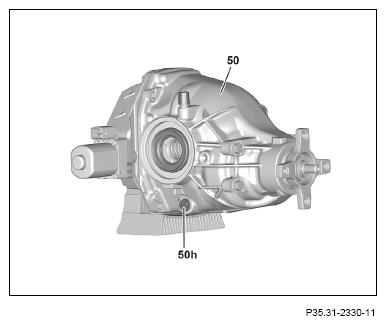

  1. Clean area around drain screw (50h).
  2. Remove drain screw (50h) and collect oil in suitable container.

    IMPORTANT Replace drain screw (50h).

    G12819612Courtesy of MERCEDES-BENZ USA
  3. Clean new drain screw (50h) and threaded hole in rear axle differential (50) using cleaning spray.

    IMPORTANT Drain screw (50h) and threaded hole must be free of oil and grease.

  4. Apply a drop of sealant to lower third of thread of drain screw (50h).
  5. Screw drain screw (50h) immediately into rear axle differential (50) and tighten to specified torque TORQUE SPECIFICATION .
    G07069069Courtesy of MERCEDES-BENZ USA

    Pour in oil

  6. Clean area around oil filler screw (50 g).
  7. Remove and replace oil filler screw (50g).
  8. Pour in oil. Model 253.388/389/988/989

    FLUID SPECIFICATION Model 205.386/387/486/487 FLUID SPECIFICATION

    IMPORTANT Observe differentiating features in order to determine the correct oil filling capacity.

    IMPORTANT With the correct oil level the oil reaches up to the bottom edge of the threaded hole.

    Cleaning

  9. New oil filler screw (50g) and threaded hole in rear axle differential (50) with cleaning spray.

    IMPORTANT The oil filler screw (50g) and tapped hole must be free from oil and grease.

    G12819614Courtesy of MERCEDES-BENZ USA
  10. Apply one drop of to lower third of thread of oil filler screw (50g).
  11. Screw oil filler screw (50g) immediately into the rear axle differential (50) and tighten to the specified torque TORQUE SPECIFICATION .
G12819609Courtesy of MERCEDES-BENZ USA
