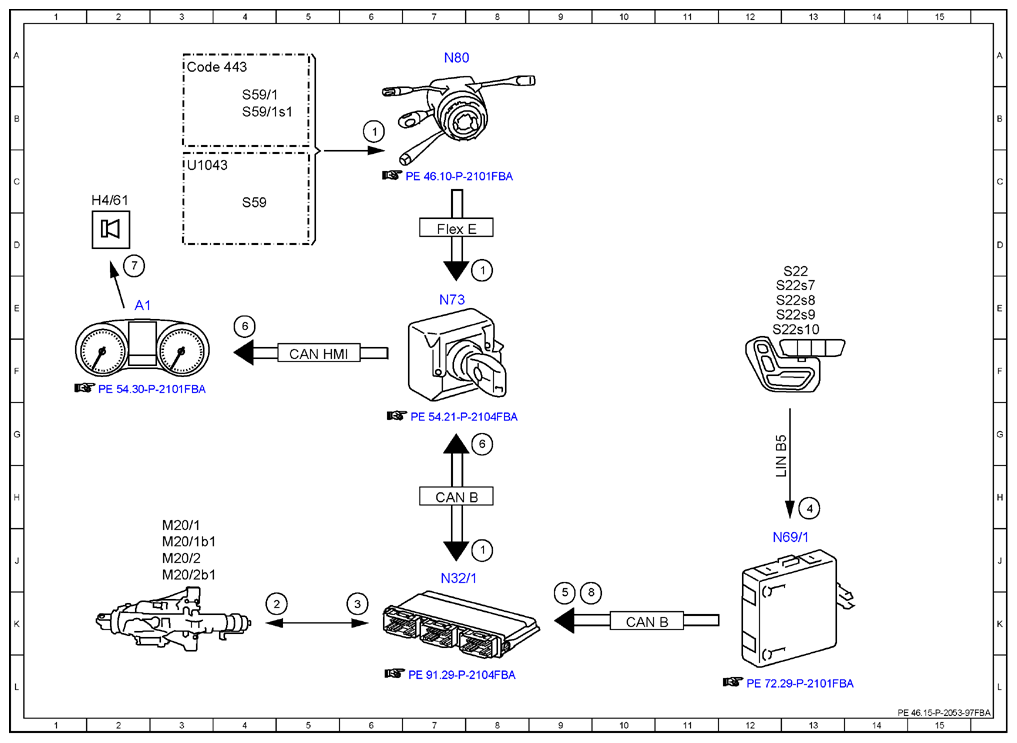

Electrical Function Schematic For Steering Column Adjustment - PE46.15-P-2053-97FBA
Model 205, 253
with code 275 (Memory Package (driver's seat, steering column and mirror))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Steering column adjustment switch, status | 6B |
| 1 | Steering column adjustment switch, status | 8D |
| 1 | Steering column adjustment switch, status | 8J |
| 2 | Steering column adjustment motor, actuation | 4K |
| 3 | Hall sensors, signal | 6K |
| 4 | Seat adjustment switch group, status | 13H |
| 5 | Store memory position, request | 9J |
| 6 | Acknowledgement tone after memory positions stored successfully, request | 4E |
| 6 | Acknowledgement tone after memory positions stored successfully, request | 8G |
| 7 | Speaker, actuation | 2D |
| 8 | Adopt memory position, request | 10J |
| A1 | Instrument cluster | 2E |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 10K |
| CAN HMI | User interface CAN | 5F |
| Code 443 | Steering wheel heater | 3A |
| Flex E | Chassis FlexRay | 7D |
| H4/61 | Instrument cluster speaker | 2C |
| LIN B5 | Left front door LIN | 12G |
| M20/1 | Steering column in/out adjustment motor | 3J |
| M20/1b1 | Steering column in/out Hall sensor | 3J |
| M20/2 | Steering column up/down adjustment motor | 3J |
| M20/2b1 | Steering column up/down Hall sensor | 3J |
| N32/1 | Driver seat control unit | 7J |
| N69/1 | Left front door control unit | 13J |
| N73 | Electronic ignition switch control unit | 7E |
| N80 | Steering column module control unit | 7A |
| S22 | Left front seat adjustment switch group | 13E |
| S22s10 | Left front memory 3 switch | 13E |
| S22s7 | Left front memory function switch | 13E |
| S22s8 | Left front memory 1 switch | 13E |
| S22s9 | Left front memory 2 switch | 13E |
| S59 | Steering column adjustment switch | 4C |
| S59/1 | Steering column adjustment and steering wheel heater switch | 4B |
| S59/1s1 | Steering column adjustment switch | 4B |
| U1043 | Valid without code (443) Steering wheel heater | 3C |
