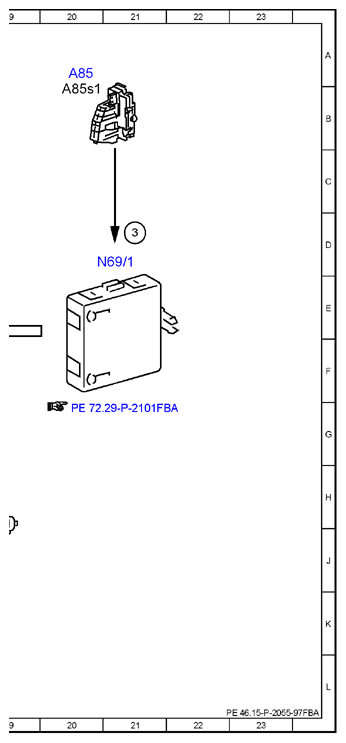

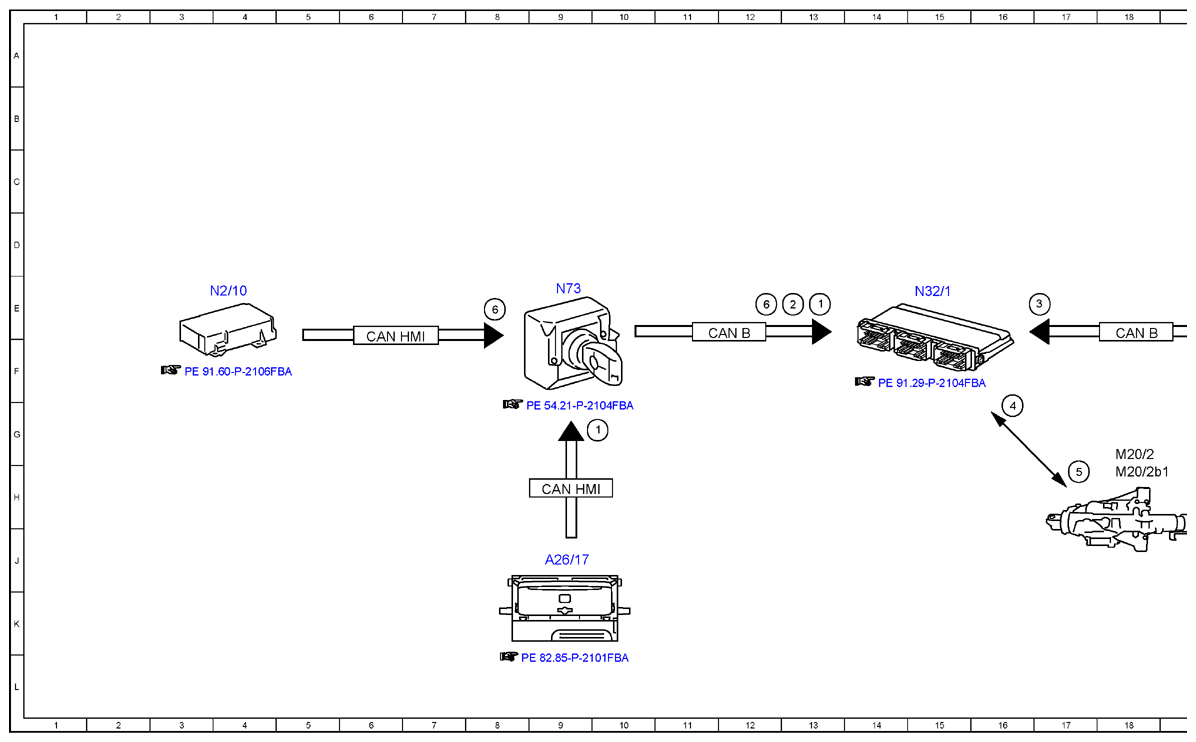

Electrical Function Schematic For Steering Column Adjustment In Conjunction With Easy Entry And Exit Feature - PE46.15-P-2055-97FBA
Model 205, 253
with code 275 (Memory Package (driver's seat, steering column and mirror))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Easy entry/exit, status | 10G |
| 1 | Easy entry/exit, status | 13E |
| 2 | Circuit 15, status | 13E |
| 3 | Door rotary tumbler switch, status | 21D |
| 3 | Door rotary tumbler switch, status | 17E |
| 4 | Hall sensor, signal | 16F |
| 5 | Steering column adjustment motor, actuation | 17H |
| 6 | Crash, signal | 12E |
| 6 | Crash, signal | 8E |
| A26/17 | Head unit | 9J |
| A85 | Left front door lock | 20A |
| A85s1 | Left front door rotary tumbler switch | 20B |
| CAN B | Interior CAN | 12E |
| CAN B | Interior CAN | 18E |
| CAN HMI | User interface CAN | 6F |
| CAN HMI | User interface CAN | 9H |
| M20/2 | Steering column up/down adjustment motor | 18G |
| M20/2b1 | Steering column up/down Hall sensor | 18H |
| N2/10 | Supplemental restraint system control unit | 4E |
| N32/1 | Driver seat control unit | 15E |
| N69/1 | Left front door control unit | 21D |
| N73 | Electronic ignition switch control unit | 9E |
