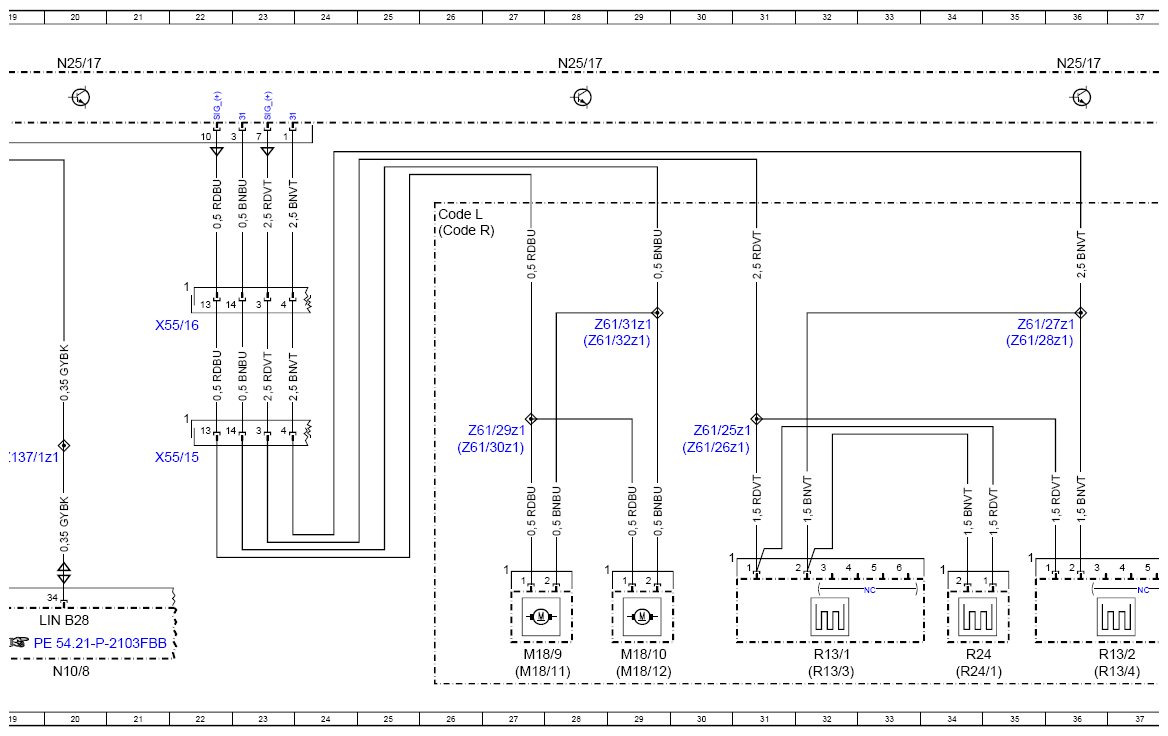

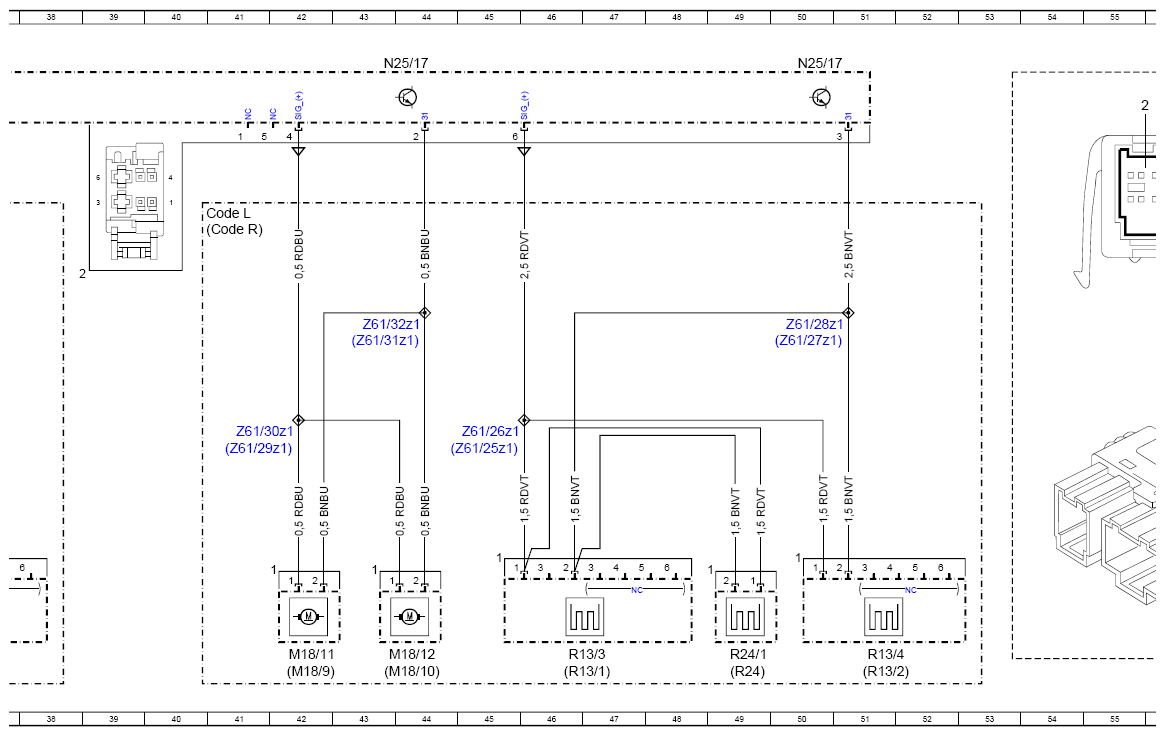

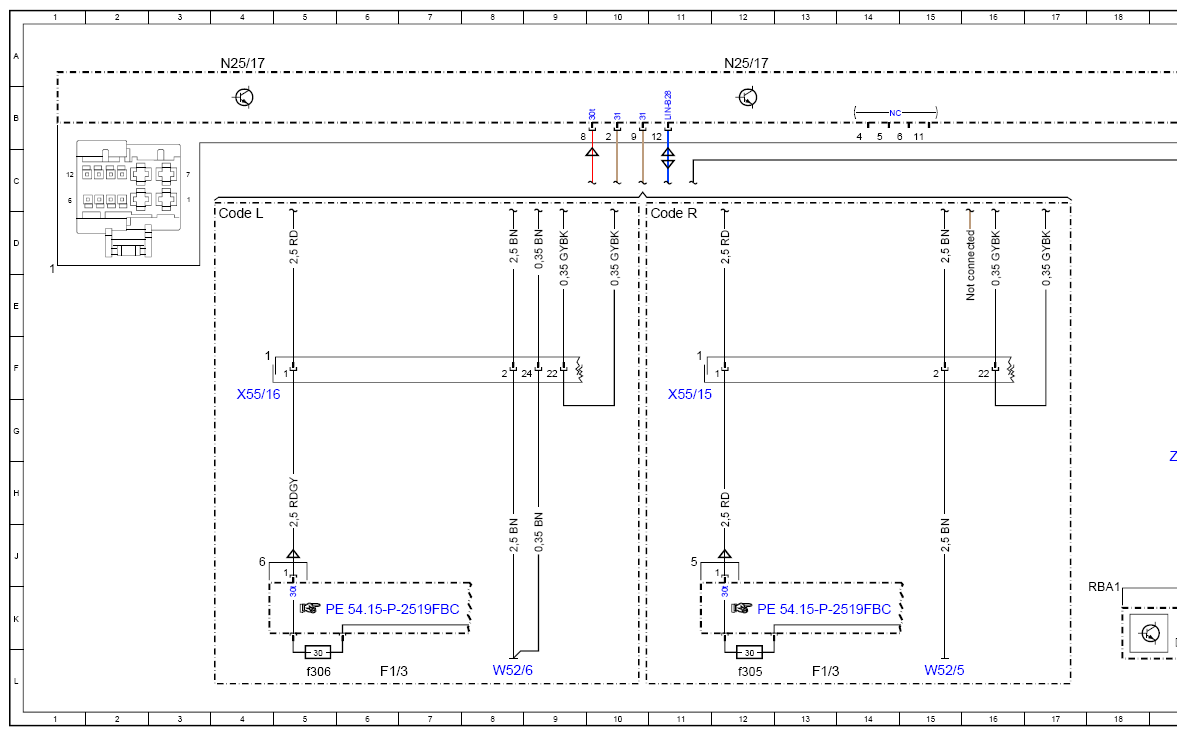

Wiring Diagram For Seat Heater Control Unit - PE91.30-P-2104-97FBC
Model 205
as of model year 2019
with code 401 (Climatised front seats)
with code 873 (Left and right driver's seat heating)
with code P65 (Ergonomics package)

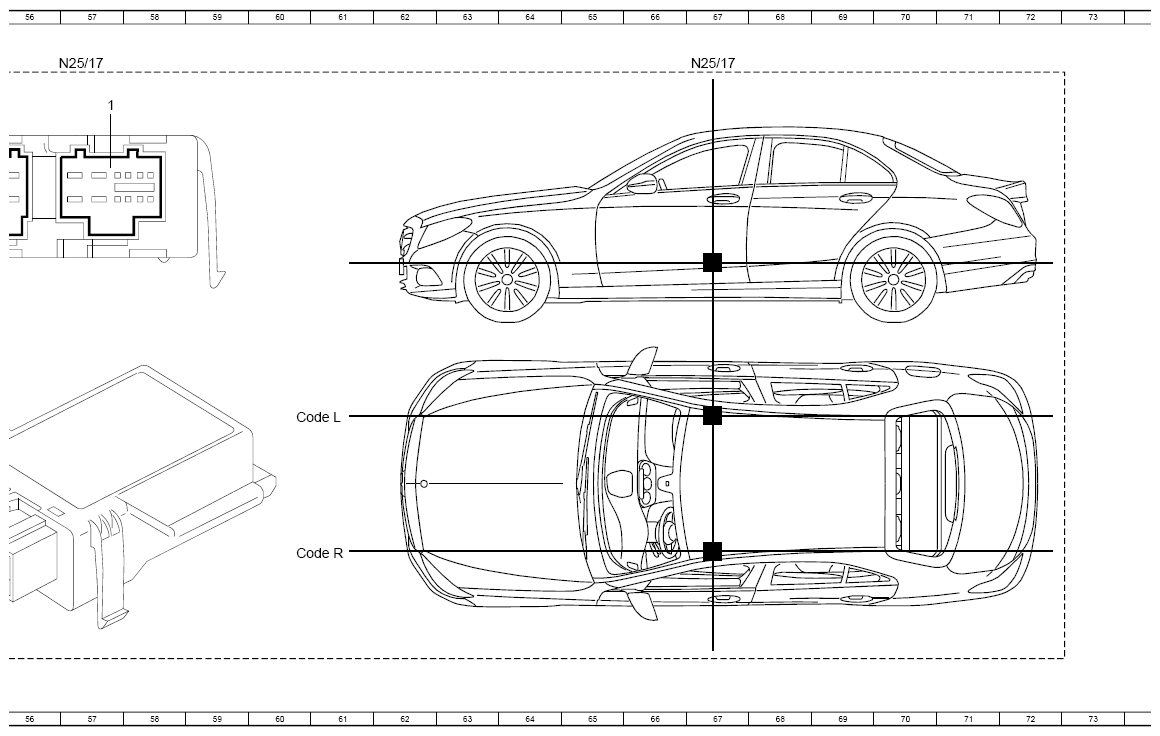

Control unit N25/17
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| Code L | LEFT-HAND DRIVE | 40D |
| Code L | LEFT-HAND DRIVE | 4D |
| Code L | LEFT-HAND DRIVE | 26D |
| Code L | LEFT-HAND DRIVE | 60G |
| Code R | RIGHT-HAND DRIVE | 40D |
| Code R | RIGHT-HAND DRIVE | 11D |
| Code R | RIGHT-HAND DRIVE | 26D |
| Code R | RIGHT-HAND DRIVE | 60J |
| F1/3 | Passenger-side A-pillar fuse box | 6L |
| F1/3 | Passenger-side A-pillar fuse box | 13L |
| F1/3f305 | Fuse 305 | 12L |
| F1/3f306 | Fuse 306 | 5L |
| LIN B28 | Heater LIN | 20K |
| M18/10 | Left front backrest seat ventilation motors | 29L |
| M18/10 | Left front backrest seat ventilation motors | 44L |
| Ml 8/11 | Right front seat cushion seat ventilation motors | 27L |
| Ml 8/11 | Right front seat cushion seat ventilation motors | 42L |
| Ml 8/12 | Right front backrest seat ventilation motors | 29L |
| Ml 8/12 | Right front backrest seat ventilation motors | 44L |
| M18/9 | Left front seat cushion seat ventilation motors | 27L |
| M18/9 | Left front seat cushion seat ventilation motors | 42L |
| N10/8 | Rear SAM control unit | 20L |
| N25/17 | Front seat heater control unit | 4A |
| N25/17 | Front seat heater control unit | 12A |
| N25/17 | Front seat heater control unit | 28A |
| N25/17 | Front seat heater control unit | 20A |
| N25/17 | Front seat heater control unit | 36A |
| N25/17 | Front seat heater control unit | 44A |
| N25/17 | Front seat heater control unit | 50A |
| N25/17 | Front seat heater control unit | 57A |
| N25/17 | Front seat heater control unit | 67A |
| R13/1 | Left front seat cushion heater pad | 32L |
| R13/1 | Left front seat cushion heater pad | 46L |
| R13/2 | Left front seat backrest heater pad | 37L |
| R13/2 | Left front seat backrest heater pad | 51L |
| R13/3 | Right front seat cushion heater pad | 32L |
| R13/3 | Right front seat cushion heater pad | 46L |
| R13/4 | Right front seat backrest heater pad | 36L |
| R13/4 | Right front seat backrest heater pad | 51L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 34L |
| R24 | Adjustable seat cushion length heater pad, left front seat | 49L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 34L |
| R24/1 | Adjustable seat cushion length heater pad, right front seat | 49L |
| W52/5 | Left center longitudinal member ground point | 15L |
| W52/6 | Right center longitudinal member ground point | 8L |
| X55/15 | Driver seat electrical connector | 11F |
| X55/15 | Driver seat electrical connector | 22H |
| X55/16 | Front passenger seat electrical connector | 4F |
| X55/16 | Front passenger seat electrical connector | 22E |
| Z137/1z1 | Connector sleeve, heater LIN | 19G |
| Z61/25z1 | Driver seat heater supply connector sleeve | 30G |
| Z61/25z1 | Driver seat heater supply connector sleeve | 45G |
| Z61/26z1 | Front passenger seat heater supply connector sleeve | 30G |
| Z61/26z1 | Front passenger seat heater supply connector sleeve | 45G |
| Z61/27z1 | Driver seat heater ground connection connector sleeve | 36E |
| Z61/27z1 | Driver seat heater ground connection connector sleeve | 50F |
| Z61/28z1 | Front passenger seat heater ground connection connector sleeve | 35F |
| Z61/28z1 | Front passenger seat heater ground connection connector sleeve | 50E |
| Z61/29z1 | Driver seat ventilation supply connector sleeve | 27G |
| Z61/29z1 | Driver seat ventilation supply connector sleeve | 41G |
| Z61/30z1 | Front passenger seat ventilation supply connector sleeve | 27G |
| Z61/30z1 | Front passenger seat ventilation supply connector sleeve | 41G |
| Z61/31z1 | Driver seat ventilation ground connection connector sleeve | 29E |
| Z61/31z1 | Driver seat ventilation ground connection connector sleeve | 43F |
| Z61/32z1 | Front passenger seat ventilation ground connection connector sleeve | 29F |
| Z61/32z1 | Front passenger seat ventilation ground connection connector sleeve | 43E |
