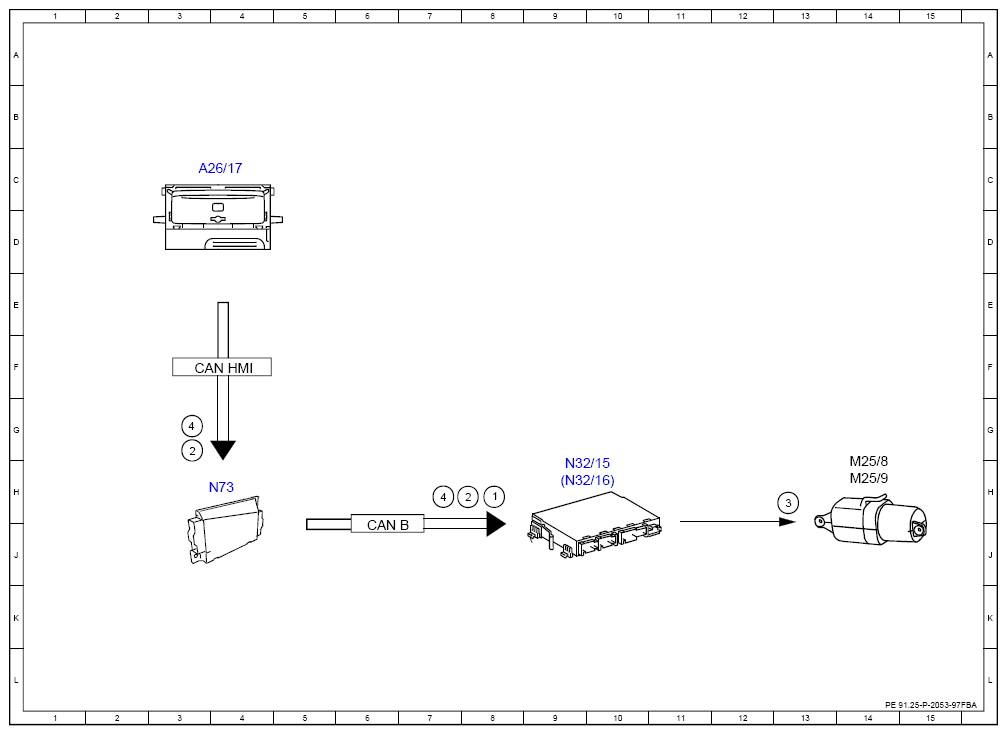

Electrical Function Schematic for Front Multicontour Seat (MKS) - PE91.25-P-2053-97FBA
Model 205
as of model year 2019
with code 409 (Left and right front multicontour seat)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8H |
| 2 | Multicontour seat adjustment, request | 8H |
| 2 | Multicontour seat adjustment, request | 3G |
| 3 | Multicontour seat pneumatic pump, actuation | 13H |
| 4 | Massage function ON, request | 3G |
| 4 | Massage function ON, request | 7H |
| A26/17 | Head unit | 3C |
| CAN B | Interior CAN | 6J |
| CAN HMI | User interface CAN | 4F |
| M25/8 | Left front multicontour seat pneumatic pump | 14H |
| M25/9 | Right front multicontour seat pneumatic pump | 14H |
| N32/15 | Left front multicontour seat control unit | 9H |
| N32/16 | Right front multicontour seat control unit | 9H |
| N73 | Electronic ignition switch control unit | 4H |
