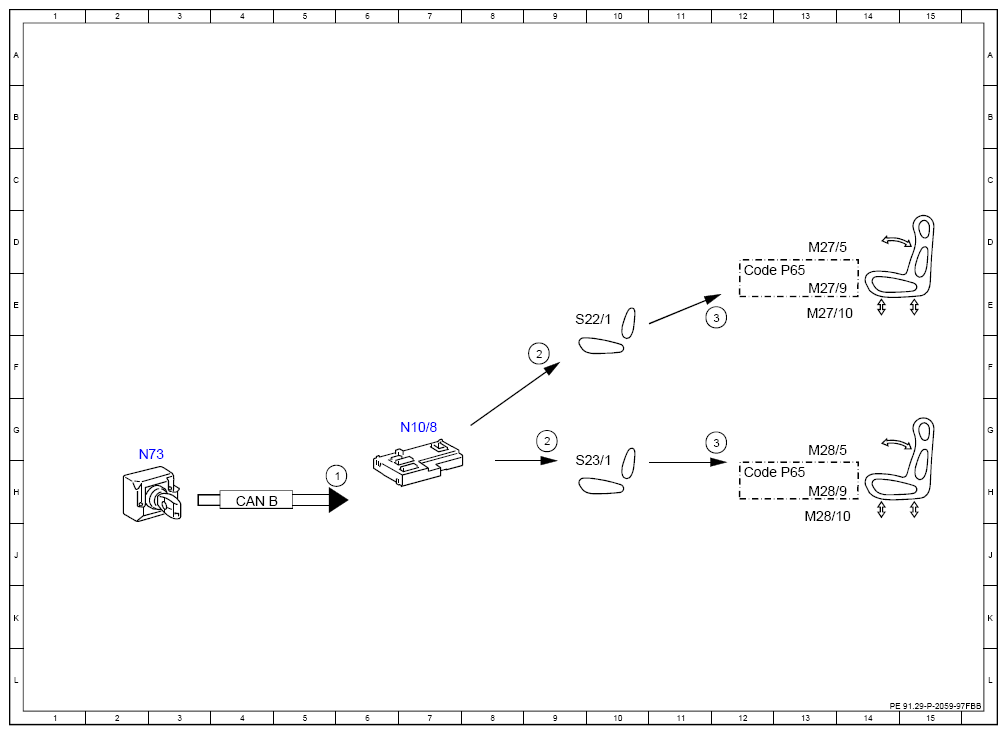

Electrical Function Schematic For Seat Adjustment (ESE) - PE91.29-P-2059-97FBB
Model 205, 253
except code 221 (Electrically adjustable left driver seat)
except code 222 (Electrically adjustable right driver seat)
except code 275 (Memory Package (driver's seat, steering column and mirror))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 5H |
| 2 | Power supply, status ON | 9G |
| 2 | Power supply, status ON | 9F |
| 3 | Seat adjustment motor, actuation | 12G |
| 3 | Seat adjustment motor, actuation | 12E |
| CAN B | Interior CAN | 4H |
| Code P65 | Seating comfort package | 12H |
| Code P65 | Seating comfort package | 12E |
| M27/10 | Driver seat height adjustment motor | 13E |
| M27/5 | Driver seat backrest inclination adjustment motor | 13D |
| M27/9 | Seat inclination adjustment motor, driver seat | 13E |
| M28/10 | Front passenger seat height adjustment motor | 13H |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 13G |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 13H |
| N10/8 | Rear SAM control unit | 7G |
| N73 | Electronic ignition switch control unit | 2G |
| S22/1 | Driver seat partially electric seat adjustment switch | 9E |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 9H |
