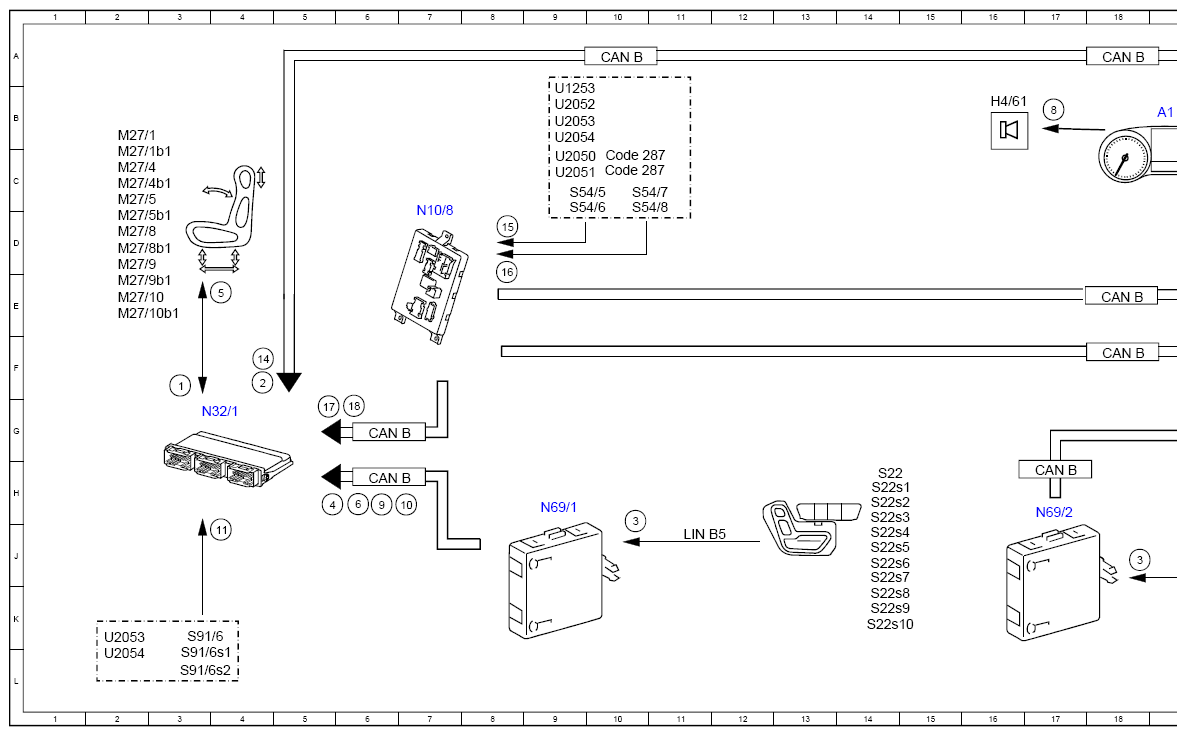

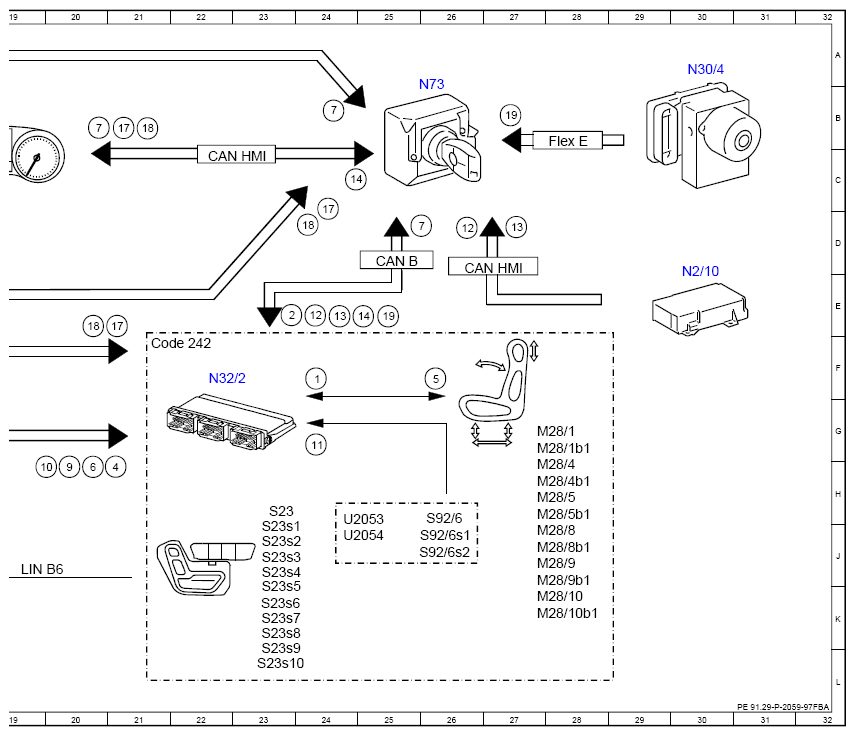

Electrical Function Schematic For Seat Adjustment (ESE) - PE91.29-P-2059-97FBA
Model 205, 253
with code 275 (Memory Package (driver's seat, steering column and mirror))
except code 221 (Electrically adjustable left driver seat)
except code 222 (Electrically adjustable right driver seat)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Hall sensors, signal | 3F |
| 1 | Hall sensors, signal | 24F |
| 10 | Door rotary tumbler switch, status | 7H |
| 10 | Door rotary tumbler switch, status | 20H |
| 11 | Backrest release/inclination microswitch, status | 4J |
| 11 | Backrest release/inclination microswitch, status | 24G |
| 12 | Front passenger seat occupied recognition, status | 26D |
| 12 | Front passenger seat occupied recognition, status | 24E |
| 13 | Seat belt buckle switch, status | 27D |
| 13 | Seat belt buckle switch, status | 24E |
| 14 | Vehicle speed, signal | 4F |
| 14 | Vehicle speed, signal | 24C |
| 14 | Vehicle speed, signal | 25E |
| 15 | Rear passenger compartment backrest inclination switch, status | 8D |
| 16 | Rear backrest lock switch, status | 8E |
| 17 | Rear backrest locking, status | 5G |
| 17 | Rear backrest locking, status | 21B |
| 17 | Rear backrest locking, status | 24D |
| 17 | Rear backrest locking, status | 21E |
| 18 | Backrest inclination in rear, status | 6G |
| 18 | Backrest inclination in rear, status | 21B |
| 18 | Backrest inclination in rear, status | 24D |
| 18 | Backrest inclination in rear, status | 20E |
| 19 | Adjust PRE-SAFE®, request | 25E |
| 19 | Adjust PRE-SAFE®, request | 27B |
| 2 | Circuit 15, status | 4F |
| 2 | Circuit 15, status | 23E |
| 3 | Seat adjustment switch group, status | 10J |
| 3 | Seat adjustment switch group, status | 18J |
| 4 | Manual adjustment, request | 5H |
| 4 | Manual adjustment, request | 21H |
| 5 | Seat adjustment motor, actuation | 4E |
| 5 | Seat adjustment motor, actuation | 26F |
| 6 | Store memory position, request | 6H |
| 6 | Store memory position, request | 20H |
| 7 | Acknowledgement tone after memory positions stored successfully, request | 20B |
| 7 | Acknowledgement tone after memory positions stored successfully, request | 25D |
| 7 | Acknowledgement tone after memory positions stored successfully, request | 24B |
| 8 | Speaker, actuation | 17B |
| 9 | Adopt memory position, request | 6H |
| 9 | Adopt memory position, request | 20H |
| A1 | Instrument cluster | 19B |
| CAN B | Interior CAN | 17H |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 25D |
| CAN B | Interior CAN | 18A |
| CAN B | Interior CAN | 10A |
| CAN B | Interior CAN | 6G |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 18F |
| CAN HMI | User interface CAN | 22C |
| CAN HMI | User interface CAN | 26D |
| Code 242 | All-electric front passenger seat with memory (right) | 21F |
| Code 287 | Through-loading feature | 10C |
| Code 287 | Through-loading feature | 10C |
| Flex E | Chassis FlexRay | 28B |
| H4/61 | Instrument cluster speaker | 16B |
| LIN B5 | Left front door LIN | 11J |
| LIN B6 | Right front door LIN | 19J |
| M27/1 | Driver seat fore/aft adjustment motor | 2B |
| M27/10 | Driver seat height adjustment motor | 2E |
| M27/10b1 | Driver seat, seat height adjustment Hall sensor, | 2E |
| M27/1b1 | Seat fore/aft adjustment Hall sensor, driver seat | 2C |
| M27/4 | Driver seat head restraint adjustment motor | 2C |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 2C |
| M27/5 | Driver seat backrest inclination adjustment motor | 2C |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 2D |
| M27/8 | Seat cushion length adjustment motor, driver seat | 2D |
| M27/8b1 | Seat cushion length adjustment Hall sensor, driver seat | 2D |
| M27/9 | Seat inclination adjustment motor, driver seat | 2D |
| M27/9b1 | Seat inclination adjustment Hall sensor, driver seat | 2E |
| M28/1 | Front passenger seat fore/aft adjustment motor | 27G |
| M28/10 | Front passenger seat height adjustment motor | 27K |
| M28/10b1 | Front passenger seat, seat height adjustment Hall sensor, | 27K |
| M28/1b1 | Seat fore/aft adjustment Hall sensor, front passenger seat | 27G |
| M28/4 | Front passenger seat head restraint adjustment motor | 27H |
| M28/4b1 | Head restraint adjustment Hall sensor, front passenger seat | 27H |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 27H |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 27H |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 27J |
| M28/8b1 | Seat cushion length adjustment Hall sensor, front passenger seat | 27J |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 27J |
| M28/9b1 | Seat inclination adjustment Hall sensor, front passenger seat | 27J |
| N10/8 | Rear SAM control unit | 7D |
| N2/10 | Supplemental restraint system control unit | 30E |
| N30/4 | Electronic Stability Program control unit | 30A |
| N32/1 | Driver seat control unit | 3G |
| N32/2 | Front passenger seat control unit | 22F |
| N69/1 | Left front door control unit | 9H |
| N69/2 | Right front door control unit | 17H |
| N73 | Electronic ignition switch control unit | 25B |
| S22 | Left front seat adjustment switch group | 14H |
| S22s1 | Left front head restraint adjustment switch | 14H |
| S22s10 | Left front memory 3 switch | 14K |
| S22s2 | Left front seat inclination adjustment switch | 14H |
| S22s3 | Left front seat fore/aft adjustment switch | 14H |
| S22s4 | Left front seat height adjustment switch | 14J |
| S22s5 | Left front backrest adjustment switch | 14J |
| S22s6 | Left front seat cushion length switch | 14J |
| S22s7 | Left front memory function switch | 14J |
| S22s8 | Left front memory 1 switch | 14K |
| S22s9 | Left front memory 2 switch | 14K |
| S23 | Right front seat adjustment switch group | 23H |
| S23s1 | Right front head restraint adjustment switch | 23J |
| S23s10 | Right front memory 3 switch | 23L |
| S23s2 | Right front seat inclination adjustment switch | 23J |
| S23s3 | Right front seat fore/aft adjustment switch | 23J |
| S23s4 | Right front seat height adjustment switch | 23J |
| S23s5 | Right front backrest adjustment switch | 23K |
| S23s6 | Right front seat cushion length switch | 23K |
| S23s7 | Right front memory function switch | 23K |
| S23s8 | Right front memory 1 switch | 23K |
| S23s9 | Right front memory 2 switch | 23L |
| S54/5 | Left rear backrest inclination switch | 9C |
| S54/6 | Right rear backrest inclination switch | 9D |
| S54/7 | Left rear backrest lock switch | 10C |
| S54/8 | Right rear backrest lock switch | 10D |
| S91/6 | Left backrest release/inclination microswitch | 3K |
| S91/6s1 | Left backrest release microswitch | 3L |
| S91/6s2 | Left backrest inclination microswitch | 3L |
| S92/6 | Right backrest release/inclination microswitch | 26H |
| S92/6s1 | Right backrest release microswitch | 26J |
| S92/6s2 | Right backrest inclination microswitch | 26J |
| U1253 | Valid for model 253 | 9B |
| U2050 | Valid for model 205. 0 | 9C |
| U2051 | Valid for model 205. 1 | 9C |
| U2052 | Valid for model 205. 2 | 9B |
| U2053 | Valid for model 205. 3 | 9B |
| U2053 | Valid for model 205. 3 | 24H |
| U2053 | Valid for model 205. 3 | 2K |
| U2054 | Valid for model 205. 4 | 9B |
| U2054 | Valid for model 205. 4 | 24J |
| U2054 | Valid for model 205. 4 | 2L |
