Customer Declaration, Replacement Of Front Passenger Seat, Deactivation Of Automatic Child Seat Recognition, SBE (Seat Occupied Recognition), Sidebag, Seatbelt Warning Buzzer Certification - OF91.00-P-1000-03AA
MODEL ALL
Due to an express customer request as of.......... the function of the sidebag, automatic child seat recognition (ACSR [AKSE]) and the seat occupied recognition (SBE) and the acoustic reminder to wear seat belts on the passenger-side have been deactivated. There is an increased risk of injury for occupants due to this measure. There may, in particular, be
- no activation of the sidebag,
- no automatic deactivation of the front passenger airbag, when the front passenger seat is not occupied,
- no deactivation of the front passenger airbag despite the use of an MB-child seat with transponder (automatic deactivation of the front passenger airbag) and
- no 2-stage deployment of the front passenger airbag
as a consequence. Due to the lack of an acoustic reminder to wear seat belts there is the risk that the front passenger may forget to wear the seat belt.
This is expressly pointed out to the customer who undertakes likewise to inform other users of the vehicle. The sign "Warning! This vehicle does not have automatic child seat recognition!" was mounted to the right-hand side of the armatures.

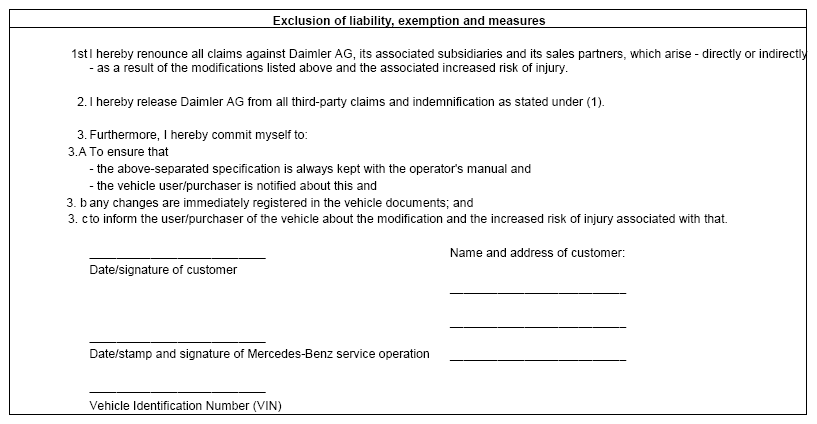

(Copy sheet, cut off here and stick the lower section into the operator's manual at the start of the chapter on SAFETY)
| Process customer request - standard | |||
| Reduction in seat belt warning tone | |||
| Customer : Inquiry | |||
| Via sales to workshop or directly to workshop | |||
| Workshop: | - | Provide information that decisions are made on an individual case basis | |
| - | Check which version of the customer declaration "Replacement of front passenger seat" is relevant | ||
| - | Inform the customer about the risks mentioned in the relevant version of the customer declaration "Replacement of front passenger seat" | ||
| Customer and workshop: | 1st | Fill out "Facts" form | |
| 2. | Fill out the customer declaration "Replacement of front passenger seat" | ||
| - | Leave modification date blank (important!) | ||
| - | Signature of customer + stamp and signature of workshop | ||
| 3. | Customer identification | ||
| - | Copy of ID | ||
| - | Copy of the motor vehicle registration certificate | ||
| - | Copy of the disabled ID when seat for disabled person installed | ||
| Send filled out forms (1+2) + copies (3) per fax to decision-maker (GSP/TP). | |||
| Fax no. +49-(0) 711-30 52 18 28 09 | |||
| Decision-maker (GSP/TPx): | - | Archiving of faxed documents (1 - 3) | |
| - | The decision-maker informs the workshop of the codes/code as well as the part number of the adhesive label "No automatic child seat recognition" | ||
| Workshop: | - | Attach the "No ACSR" installed on passenger side of instrument panel (as for model 169) | |
| - | Decoding using code | ||
| - | Careful documentation in the FDOK [vehicle documentation system] (process + person implementing) | ||
| - | Now enter the date on the customer declaration that was previously left blank | ||
| - | Copy the customer declaration | ||
| - | Cut off and stick the lower section of the original into the operator's manual (start of the chapter on Safety) | ||
| - | Send the lower section + copy of the complete customer declaration by fax + by letter to the decision-maker (GSP/TPx) | ||
| - | Now enter into the service booklet | ||
| - | Customer's obligation: Entry in the corresponding vehicle documents (Technical Inspection Association acceptance) | ||
| - | Recommendation to the customer: Notification of the insurance company | ||
| Decision-maker (GSP/TP): | Archiving | ||
| - | the lower section of the original as well as | ||
| - | a copy of the complete customer declaration with the decision-maker | ||
