Remove/Install Head Restraint Guide On Front Seat - AR91.16-P-0050LW
Model 205, 213, 253
except code 555 (AMG-Performance Seat)
Model 238
Model 293

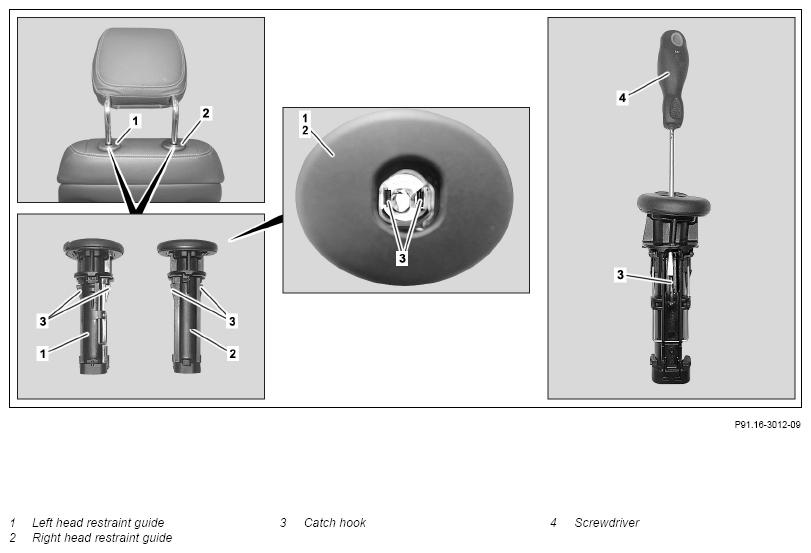

Shown on model 205.0 except code 555 (AMG Performance seats) and except code 275 (Electrically adjustable driver's seat with memory function)
Model 205.3/4 except code 555 (AMG Performance seats), model 238
| Remove | |||
| 1 | Remove head restraint from front seat. | AR91.16-P-0040LW | |
| 2 | Remove cover (5). | Model 205.3/4 except code 555 (AMG-Performance Seat) Model 238 |
|
| 3 | Operate both catch hooks (3), as shown, using a screwdriver (4) and pull out left head restraint guide (1) or right head restraint guide (2) upwards. | ||
| Install | |||
| 4 | Insert left head restraint guide (1) or right head restraint guide (2) into backrest frame from above and latch into place. | ||
| 5 | Install cover (5). | Model 205.3/4 except code 555 (AMG-Performance Seat) Model 238 |
|
| 6 | Install head restraint at front seat. | AR91.16-P-0040LW |
