Remove/Install Front Seat Backrest Cover - AR91.18-P-1820CLW

Model 205.3/4

except code 555 (AMG-Performance Seat)

Model 238

Courtesy of MERCEDES-BENZ USA

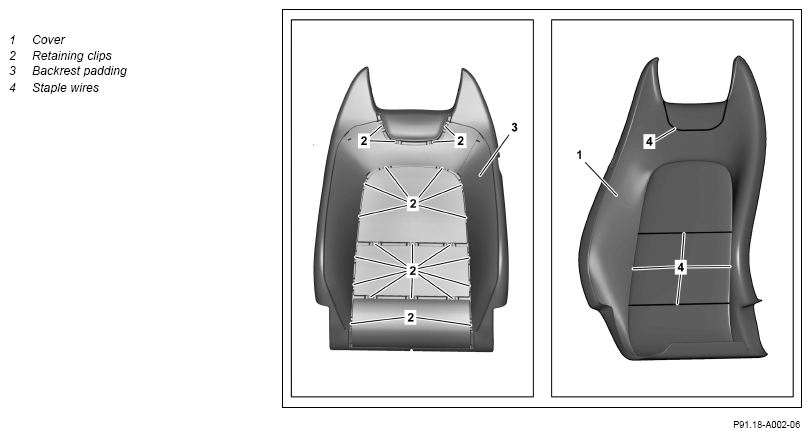

	Remove
1	Remove seat backrest padding (3) with cover (1).		AR91.10-P-0003CLW
2	Release cover (1) at sides of seat backrest padding (3) and turn inside out.
3	Unclip staple wires (4) from retaining clips (2).	Dismantling tool	Fig 1
4	Remove cover (1) from seat backrest padding (3).
	Install
5	Position cover (1) centrally on seat backrest padding (3) and align seams of cover (1) in notches of seat backrest padding (3).
6	Clip upper staple wire (4) into retaining clips (2) at seat backrest padding (3).	Dismantling tool	Fig 1
7	Check alignment of cover (1).
8	Clip remaining staple wires (4) into retaining clips (2) on seat backrest padding (3) starting from the inside working outwards.	Dismantling tool	Fig 1
9	Pull cover (1) over seat backrest padding (3).
10	Install seat backrest padding (3) with cover (1)		AR91.10-P-0003CLW

Fig 1: Identifying Dismantling Tool (205 589 03 63 00)

Courtesy of MERCEDES-BENZ USA
