Make Cutout For Universal Holder On Seat Backrest Padding - AR91.10-P-1120-01LWE

Model 205.0/1/2, 213, 253, 293

with code 866 (Pre-installation for Rear Seat Entertainment System)

Courtesy of MERCEDES-BENZ USA

1. Print out template (1).
2. Determine and take note of dimensions (a, b) of printed template (1).
3. Copy printed template (1) with corresponding factor to original size.

   Original size:

   Dimension (a) = 200 mm

   Dimension (b) = 160 mm

   To determine the factor, divide the dimension (a, b) of the original size by the corresponding calculated dimension (a, b).

   Courtesy of MERCEDES-BENZ USA

4. Cut out the template copied to the original size (1).

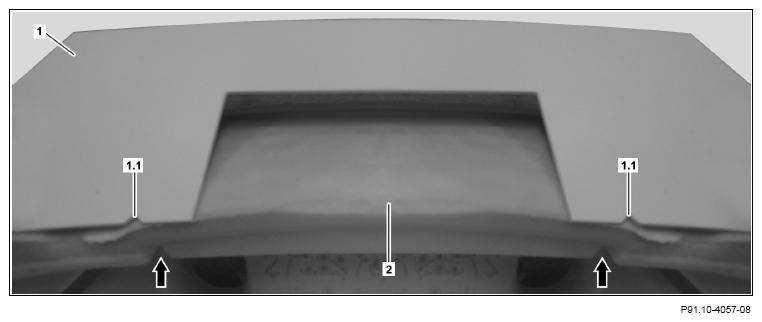

5. Position the template (1) on the padding (2).

   The notches (1.1) must lie over the notches (arrows).

6. Draw notch of template (1) onto padding (2).
7. Remove template (1).
8. Produce cutout on padding (2) using marking and the old part.

   Align the tip of the blade with the cutting line of the old part.

   Otherwise, the padding (2) may be damaged.
