Weight Sensing System Control Unit, Basic Function - GF91.60-P-9891A
Model all (CAR)
with code U10 (Front passenger seat with weight sensor)
Overview
This document contains the following information:
- Location
- Task
Location

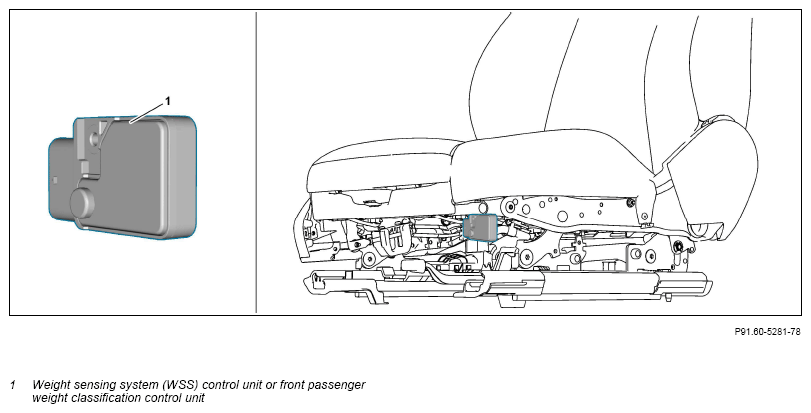

The WSS/weight classification control unit is located at the bottom of the seat frame of the front passenger seat.
Task
The WSS/weight classification control unit determines the weight on the front passenger seat by means of a pressure measurement in a silicone-filled seat mat. The WSS/weight classification control unit sends information on weight classification to the Supplemental Restraint System (SRS) control unit.
| Component descriptions | |||
| Component description for Weight Sensing System (WSS) control unit | Model 223 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4046A | |
| Component description for Weight Sensing System (WSS) control unit | Model 243 with code U10 (Front passenger seat with weight sensor) |
GF91.60-P-4069B | |
