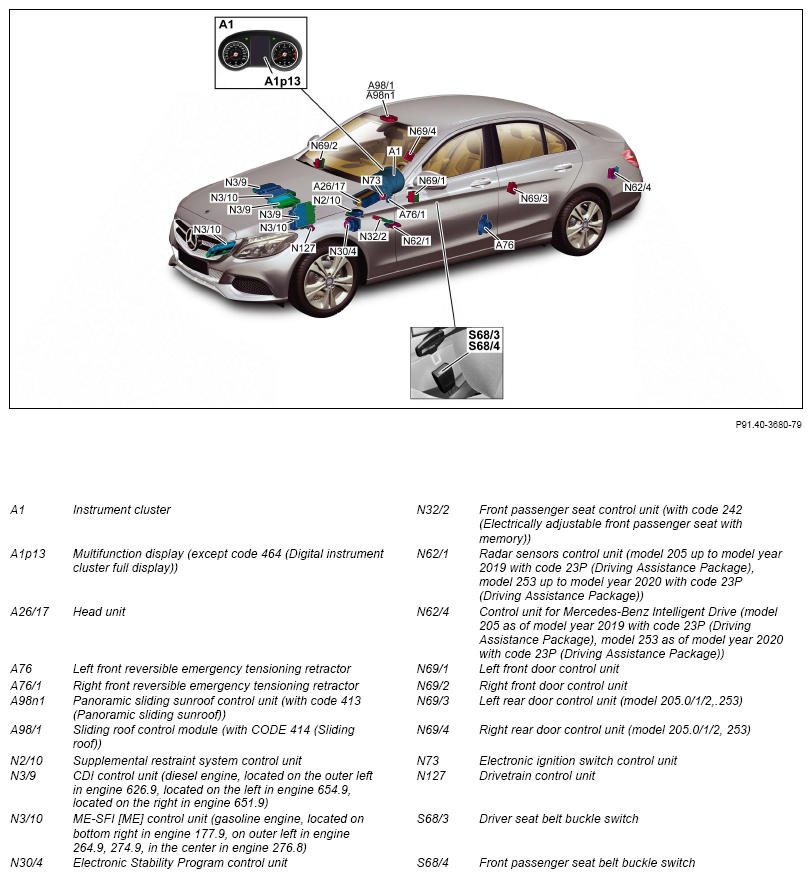

Overview Of System Components For PRE-SAFE(R) - GF91.40-P-9997RF
Model 205, 253
with code 299 (PRE-SAFE®)
Model 205.4 with code 299 (PRE-SAFE®)
The rear control unit (N22/6) is also installed, but it is not shown.
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Model 205 up to model year 2019 with code 299 (PRE-SAFE®) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 299 (PRE-SAFE®) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 up to model year 2019 with code 299 (PRE-SAFE®) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 299 (PRE-SAFE®) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 as of model year 2019 with code 299 (PRE-SAFE®) with code 506 (Audio 20 NTG 5.5 radio) Model 205 with code 299 (PRE-SAFE®) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 with code 299 (PRE-SAFE®) with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Model 253 with code 299 (PRE-SAFE®) with code 547 (Connect 20 Entry (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 with code 299 (PRE-SAFE®) with code 548 (Connect 20 MID (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 with code 299 (PRE-SAFE®) with code 549 (Connect 20 HIGH (NTG6)) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFM | ||
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020RF | |
| Component description for panoramic sliding | Model 205, 253 with code roof control module 299 (PRE-SAFE®) with code 413 (Panoramic sliding sunroof/glass roof) A98n1 |
GF77.20-P-4106RF | |
| Component description for sliding roof control module | Model 205, 253 with code 299 (PRE-SAFE®) with code 414 (Electric sunroof, glass version) A98/1 |
GF77.20-P-4108RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for CDI control unit | Model 205 with engine 626 with code 299 (PRE-SAFE®) N3/9 |
GF07.16-P-6000ORB | |
| Model 253 with engine 642.8 with code 299 (PRE-SAFE®) N3/9 |
GF07.16-P-6000OGY | ||
| Model 205.012/212 with engine 651.9 with code 299 (PRE-SAFE®) N3/9 |
GF07.16-P-6000OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 with code 299 (PRE-SAFE®) with code 494 (US version) Model 253 with engine 651.9 with code 299 (PRE-SAFE®) N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 with code 299 (PRE-SAFE®) except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205 (except 205.013/213), 253 (except 253.311/911) with engine 654.9 with code 299 (PRE-SAFE®) Model 253 with engine 656.9 with code 299 (PRE-SAFE®) N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213, 253.311/911 with engine 654.9 with code 299 (PRE-SAFE®) N3/9 |
GF07.16-P-6000ORH | ||
| Component description for ME-SFI (ME) control unit | Model 205, 253 with engine 177.9 with code 299 (PRE-SAFE®) N3/10 |
GF07.61-P-6000MNA | |
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 with code 299 (PRE-SAFE®) N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253, 253.354/954 with engine 274.9 with code 299 (PRE-SAFE®) N3/10 |
GF07.61-P-6000MRH | ||
| Model 205, 253 with engine 276.8 with code 299 (PRE-SAFE®) N3/10 |
GF07.61-P-6000MMV | ||
| Model 205, 253 with engine 264.9 with code 299 (PRE-SAFE®) N3/10 |
GF07.61-P-6000MRS | ||
| Rear control unit, component description | Model 205.4 with code 299 (PRE-SAFE®) N22/6 |
GF54.21-P-4134RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.353/354/953/954/99) with code 299 (PRE-SAFE®) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253, 253.354/954/99 with code 299 (PRE-SAFE®) N30/4 |
GF42.45-P-5119RFH | ||
| Component description for front passenger seat control unit | Model 205, 253 with code 242 (Front passenger seat, electrically adjustable with memory function) with code 299 (PRE-SAFE®) N32/2 | GF91.29-P-5241RF | |
| Component description for radar sensors control unit | Model 205 up to model year 2019 with code 23P (Drive package) with code 299 (PRE-SAFE®) Model 253 up to model year 2020 with code 23P (Drive package) with code 299 (PRE-SAFE®) N62/1 | GF30.30-P-3301RF | |
| Mercedes-Benz Intelligent Drive control unit, component description | Model 205 as of model year 2019 with code 23P (Drive package) with code 299 (PRE-SAFE®) Model 253 (except 253.99) as of model year 2020 with code 23P (Drive package) with code 299 (PRE-SAFE®) N62/4 | GF30.30-P-3312RFM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control | Model 205.0/1/2, 253 with code unit 299 (PRE-SAFE®) N69/3, N69/4 |
GF72.29-P-6021RF | |
| Component description for the electronic ignition lock control unit | Model 205 up to model year 2019 with code 299 (PRE-SAFE®) Model 253 (except 253.99) up to model year 2020 with code 299 (PRE-SAFE®) N73 | GF80.57-P-6001RF | |
| Model 205 as of model year 2019 with code 299 (PRE-SAFE®) Model 253 (except 253.99) as of model year 2020 with code 299 (PRE-SAFE®) Model 253.99 with code 299 (PRE-SAFE®) N73 |
GF80.57-P-6001RFM | ||
| Drivetrain control unit, component description | Model 205, 253 with engine 177.9 with code 299 (PRE-SAFE®) N127 |
GF54.21-P-2141MNA | |
| Model 205 with engine 264.9 with code 299 (PRE-SAFE®) N127 |
GF54.21-P-2141MRS | ||
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 with code 299 (PRE-SAFE®) N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253, 253.354/954 with engine 274.9 with code 299 (PRE-SAFE®) N127 |
GF54.21-P-2141MRH | ||
| Model 205, 253 with engine 276.8 with code 299 (PRE-SAFE®) N127 |
GF54.21-P-2141RF | ||
| Model 205 with engine 626 with code 299 (PRE-SAFE®) N127 |
GF54.21-P-2141ORB | ||
| Model 205.012/212 with engine 651.9 with code 299 (PRE-SAFE®) N127 |
GF54.21-P-2141OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 with code 299 (PRE-SAFE®) Model 253 with engine 642.8, 651.9 with code 299 (PRE-SAFE®) N127 |
GF54.21-P-2141OLD | ||
| Model 205, 253 with engine 654.9 with code 299 (PRE-SAFE®) Model 253 with engine 656.9 with code 299 (PRE-SAFE®) N127 |
GF54.21-P-2141ORH | ||
| Table of contents for function description of PRE-SAFE(R) | GF91.40-P-0997RF |
