Check Accelerator Pedal Modification - AP86.20-P-8656C
Model 156, 169, 172, 176, 177, 204, 205, 206, 207, 212, 213, 218, 221, 222, 223, 238, 243, 245, 246, 247, 253, 254, 257, 293 with code 45P (Disability conversion - Sales control code)

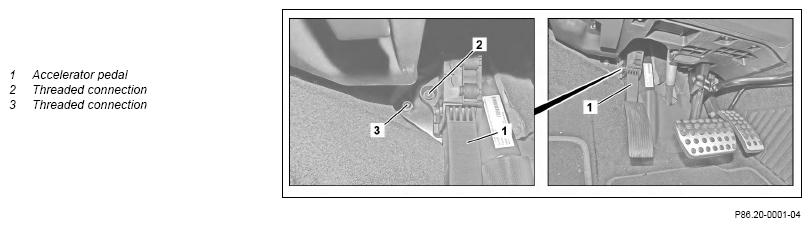

Shown in model 246
| Check | |||
| 1 | Check that the threaded connections (2, 3) on the accelerator pedal (1) are firmly seated. | If the threaded connections (2, 3) are not adequately fastened. ↓ Retighten threaded connections (2, 3). |
