Disconnect/Connect Engine Wiring Harness - AR15.18-P-1000-03MNA
Engine 177 in model 205, 253
ENGINE WIRING HARNESS
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.18-P-1003-01G | Screw, cable duct to cylinder head cover/charge air cooler/heat shield, right | Nm | 9 |
ENGINE WIRING HARNESS
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA15.18-P-1004-01G | Bolt, engine wiring harness to ME-SFI [ME] control unit | Nm | 9 |
- Remove screws (1)
at cable ducts (3).
- Release and disconnect electrical connectors (2).

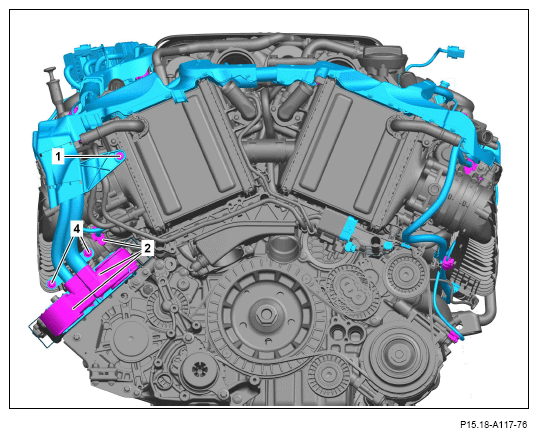

Shown on the left side of the engine
- Remove screws (4).
- Remove electrical wiring harness.

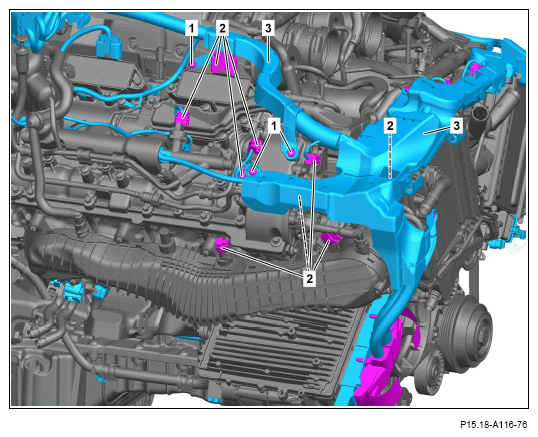

Shown on front right side of engine
- Remove cable ducts (3) with electrical wiring harnesses
and place outside working area.
Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.

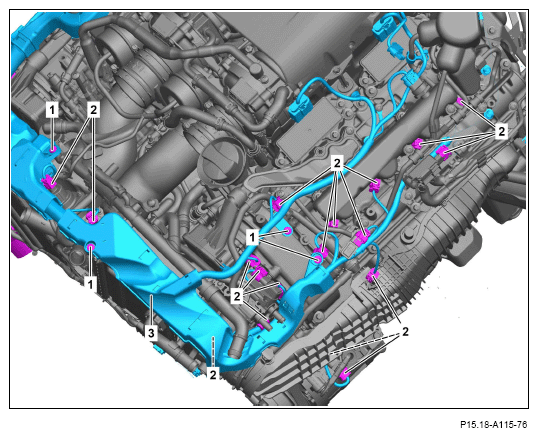

Shown on right side of engine
