Disconnect, Connect Wiring Harness At Alternator With Tie - AR15.40-P-5032-01MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190

ALTERNATOR

Number Designation Engine 176 Engine 177
BA15.40-P-1003-01T Nut, positive line to alternator Nm 16 16
ALTERNATOR

Number Designation Engine 178
BA15.40-P-1003-01T Nut, positive line to alternator Nm 16
  1. Disconnect electrical connection (1).
  2. Detach cap and detach electrical line (2) on alternator TORQUE SPECIFICATION .

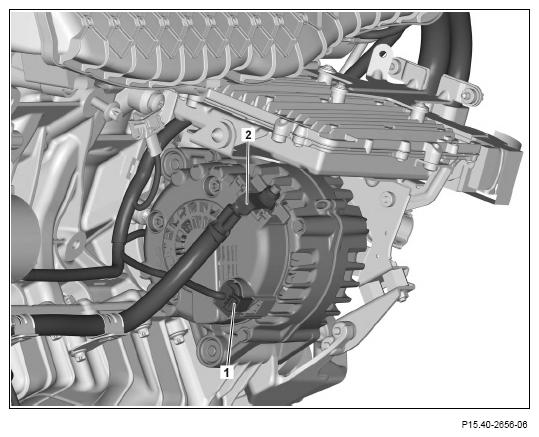

    Shown on engine 177 in model 205

    G13656614Courtesy of MERCEDES-BENZ USA
