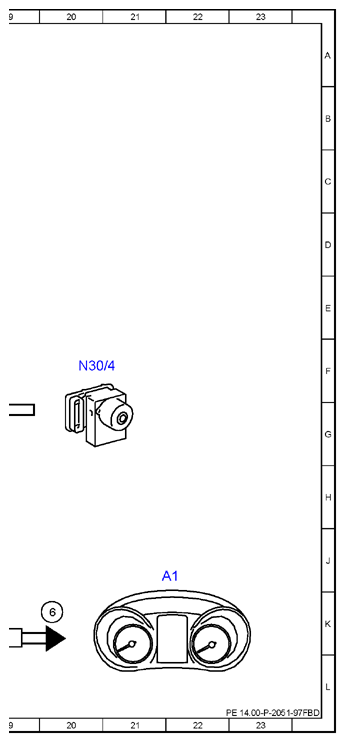

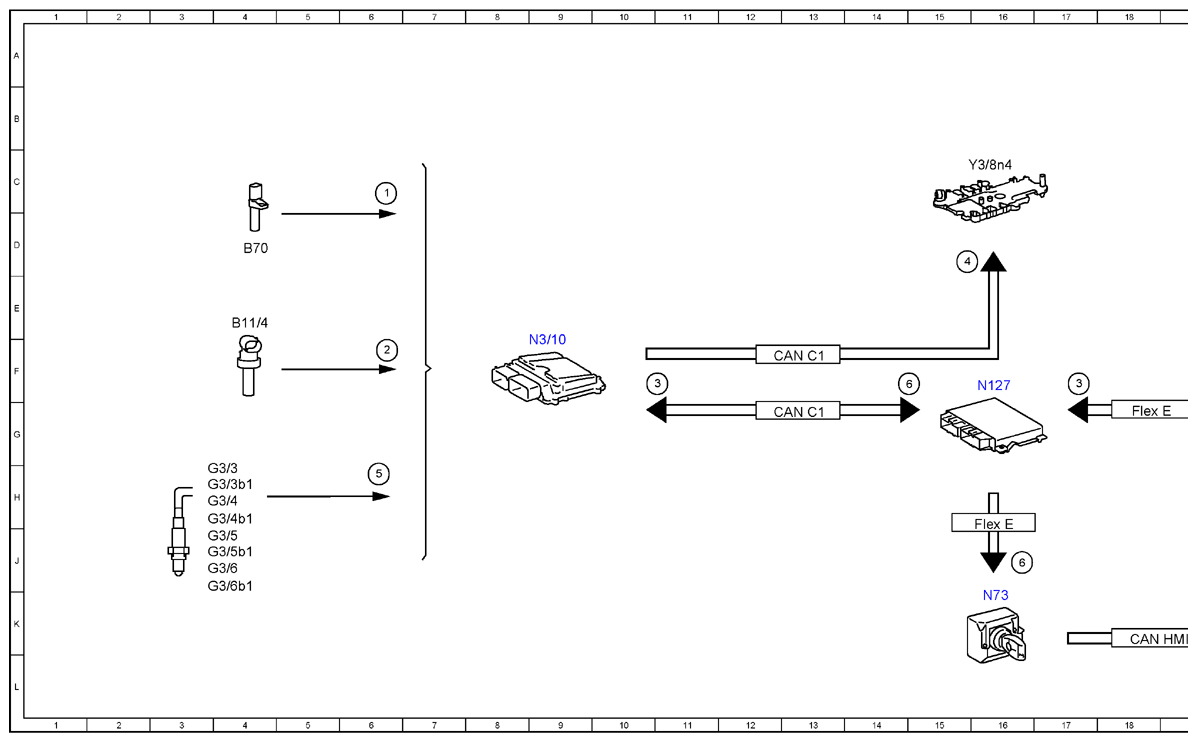

Electrical Function Schematic For Exhaust Treatment - PE14.00-P-2051-97FBD
Engine 177.9 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 6C |
| 2 | Coolant temperature sensor, signal | 6F |
| 3 | Wheel speed, signal | 17F |
| 3 | Wheel speed, signal | 11F |
| 4 | Shift point, increase request | 15D |
| 5 | Oxygen sensor sensor element, signal | 6H |
| 6 | Indicator lamp, request | 15F |
| 6 | Indicator lamp, request | 16J |
| 6 | Indicator lamp, request | 20K |
| A1 | Instrument cluster | 22J |
| B11/4 | Coolant temperature sensor | 4E |
| B70 | Crankshaft Hall sensor | 4D |
| CAN C1 | Drive train CAN | 13F |
| CAN C1 | Drive train CAN | 13G |
| CAN HMI | User interface CAN | 18K |
| Flex E | Chassis FlexRay | 16H |
| Flex E | Chassis FlexRay | 18G |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 3H |
| G3/3b1 | Left oxygen sensor element upstream of catalytic converter | 3H |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 3H |
| G3/4b1 | Right oxygen sensor element upstream of catalytic converter | 3H |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 3J |
| G3/5b1 | Left oxygen sensor element downstream of catalytic converter | 3J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 3J |
| G3/6b1 | Right oxygen sensor element downstream of catalytic converter | 3J |
| N127 | Drivetrain control unit | 16F |
| N3/10 | ME-SFI [ME] control unit | 9F |
| N30/4 | Electronic Stability Program control unit | 20F |
| N73 | Electronic ignition switch control unit | 16K |
| Y3/8n4 | Fully integrated transmission control unit | 16C |
