Determine Crankshaft Bearing Axial Play - AR03.20-P-4291-03MNA

Engine

176, 177, 178, 254, 256

MODIFICATION NOTES

TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number	Designation			Engine 176	Engine 177
BE03.20-P-1001-04E	Main bearing play	Radial measurement when new	mm	0, 022...0, 046	0, 022...0, 046
BE03.20-P-1001-04E	Main bearing play	Axial measurement when new	mm	0, 090...0, 280	0, 090...0, 280

TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number	Designation			Engine 178	Engine 254
BE03.20-P-1001-04E	Main bearing play	Radial measurement when new	mm	0, 022...0, 046	0, 022...0, 054
BE03.20-P-1001-04E	Main bearing play	Axial measurement when new	mm	0, 090...0, 280	0, 100...0, 273

TEST SPECIFICATIONS FOR CRANKSHAFT BEARING CLEARANCE

Number	Designation			Engine 256
BE03.20-P-1001-04E	Main bearing play	Radial measurement when new	mm	0, 022...0, 054
BE03.20-P-1001-04E	Main bearing play	Axial measurement when new	mm	0, 100...0, 273

Fig 1: Identifying Mount Dial Indicator (001 589 93 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Dial Indicator Holder (363 589 02 21 00)

Courtesy of MERCEDES-BENZ USA

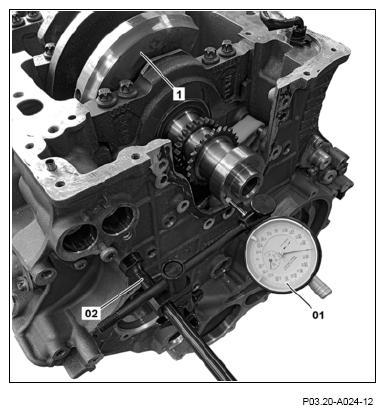

Attach dial indicator holder (02) to the crankcase.
Insert dial indicator (01) into the dial indicator holder (02) and set a preload of at least 3 mm.
Align measuring tip of dial indicator (01) at right angle to crankshaft flange.
Press on crankshaft (1) in an axial direction to one side up to the attachment and hold.
Set dial indicator scale to zero.
Press on crankshaft (1) in an opposite axial direction to one side up to the attachment and hold.
Read off measurement value on the dial indicator (01) and compare with specified value.
The measurement value obtained corresponds to the crankshaft end play (1).

Courtesy of MERCEDES-BENZ USA
