Notes On Distribution Of Sealant On Crankcase End Cover - AH01.40-P-1000-09MNA
ENGINE 176 in model 167, 217, 222, 223
ENGINE 176 in model 463
ENGINE 177
ENGINE 178 IN MODEL 190
Apply sealant on specified surfaces only in bead form with a height and width of 1.0 mm (±0.3 mm).
Process the sealant within a period of 10 minutes.
Do not spread the sealant bead.
The sealing surfaces must be cleaned.
Use only the sealant listed in the repair products.
After applying the sealant, mount the end cover within a period of 10 minutes.

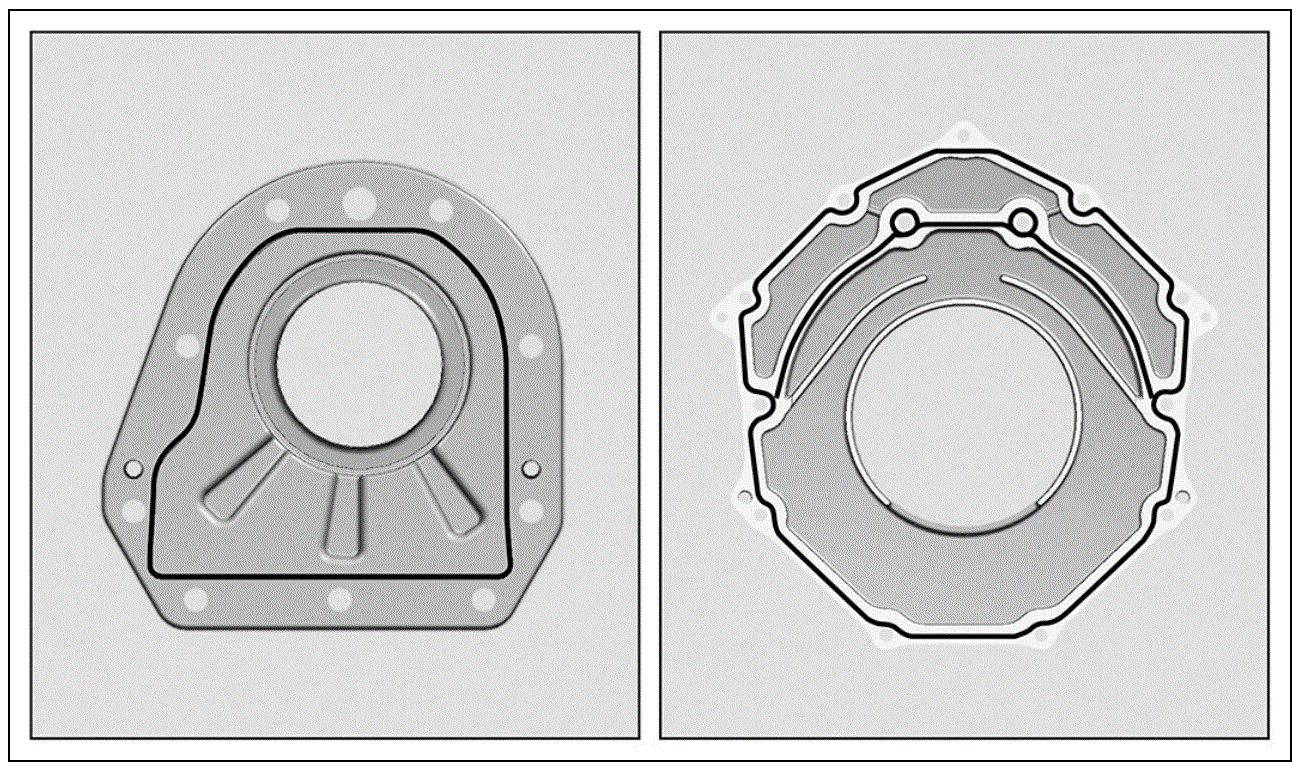

Shown on front and rear end cover of engine 176 in model 167, 217, 222, 223, 463 and engine 177 in model 463
Shown here is the front and rear end cover foe engine 178 in model 190
