Remove/Install Oil Circuit Feed Line Of Turbochargers - AR09.40-P-6040MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Engine 178 in model 190 (except 190.381)

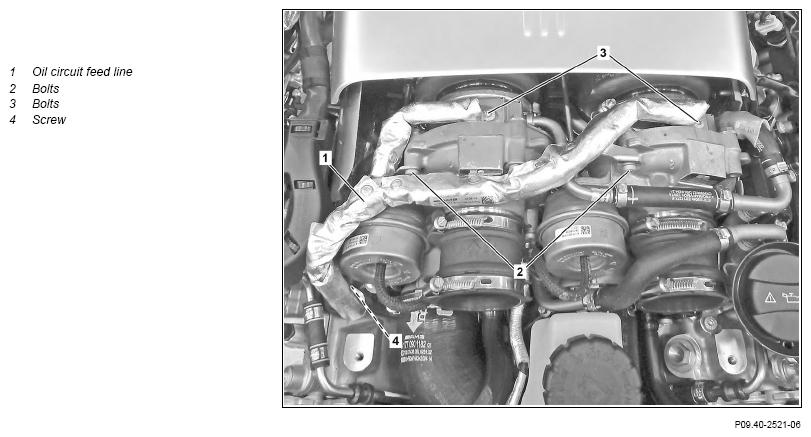

Shown on ENGINE 177
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove right air filter housing. | Engine 176 in model 463 up to model year 2019 Engine 177 in model 205 |
AR09.10-P-1150MNA |
| 2 | Detach cable ties of the purge line from the oil circuit feed line (1). | Engine 178 in model 190 (except 190.381) |
|
| 3 | Remove screws (2) from the brackets of the oil circuit feed line (1) on the left and right exhaust gas turbocharger. | *BA09.40-P-1002-01ZA | |
| 4 | Remove screws (3) from left and right exhaust gas turbocharger. | *BA09.40-P-1002-01ZA | |
| 5 | Remove screw (4) from cylinder head and remove oil circuit feed line (1) upward. | *BA09.40-P-1002-01ZA | |
| 6 | Install in the reverse order. | ||
| 7 | Check oil level in the engine and correct if necessary. | ||
| Engine 176 in model 463.234/239/255 up to model year 2019 | AP18.00-P-0101GGE | ||
| Engine 177 in model 205 Engine 178 in model 190 (except 190.381) |
AP18.00-P-1848U | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run and check oil circuit feed line (1) for leak tightness. |
TURBOCHARGER
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA09.40-P-1002-01ZA | Bolt, oil pressure line to turbocharger/cylinder head | Nm | 9 | 9 |
TURBOCHARGER
| Number | Designation | Engine 178 | |
|---|---|---|---|
| BA09.40-P-1002-01ZA | Bolt, oil pressure line to turbocharger/cylinder head | Nm | 9 |
