Align Clamp Between Turbocharger And Catalytic Converter - AR09.40-P-6018-01MNA
Engine 176 in model 463
Engine 177 in model 205
Engine 177 in model 253
Engine 178 in model 190
MODIFICATION NOTES
| 26.05.2015 | Clamp, front exhaust system to turbocharger | Engine 178 in model 190 | BA49.10-P-1010-01AG |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 205 | Engine 177 in model 253 | ||
|---|---|---|---|---|---|
| BA49.10-P-1001-02E | Clamp, front exhaust system to turbocharger | M6 | Nm | 8 | 8 |
| M8 | Nm | 20 | 20 | ||
EXHAUST SYSTEM
| Number | Designation | Engine 176 in model 463 up to model year 2019 | Engine 176 in model 463 as of model year 2019 | ||
|---|---|---|---|---|---|
| BA49.10-P-1001-02F | Screw/bolt, catalytic converter clamp to exhaust gas turbocharger | M6 | Nm | 8 | 8 |
| M8 | Nm | 20 | 20 | ||
EXHAUST SYSTEM
| Number | Designation | Engine 178 in model 190 | |
|---|---|---|---|
| BA49.10-P-1010-01AG | Clamp, front exhaust system to turbocharger | Nm | 20 |

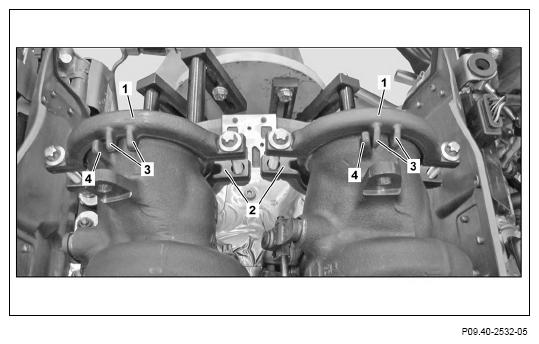

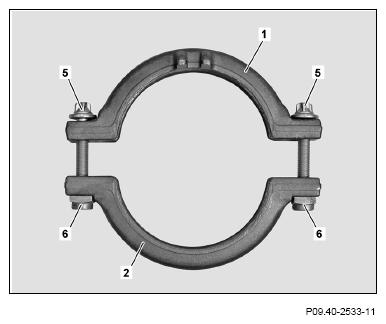

- Attach the upper part of the clamps (1) and the lower part of the clamps (2) to the respective exhaust gas turbocharger in such a way that the noses (3) of the upper part of the clamps (1) are to the right of the stay (4) as shown in the picture.
The stay (4) must never stand between the noses (3). Correct assembly cannot be assured otherwise.
- Screw in screws (5). Engine 178 in model 190
Engine 177.9 in model 205
Engine 177.9 in model 253
Screw/bolts (5) must be tightened alternately.
