Align Clamp Between Exhaust Gas Turbocharger And Exhaust Manifold - AR09.40-P-6017-01MNE

Engine 177, 178

Engine 177

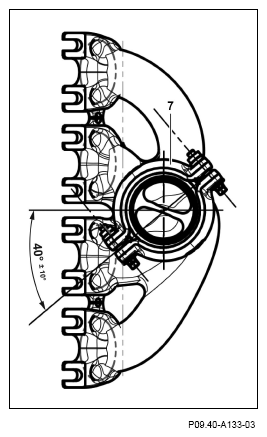

1. Position clamp (7) as shown.

   Shown on left exhaust manifold

   Courtesy of MERCEDES-BENZ USA

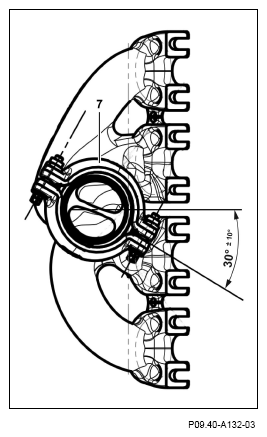

2. Position clamp (7) as shown.

   Shown on right exhaust manifold

   Courtesy of MERCEDES-BENZ USA
