Remove/Install Engine Oil Temperature Sensor - AR18.40-P-4124MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205

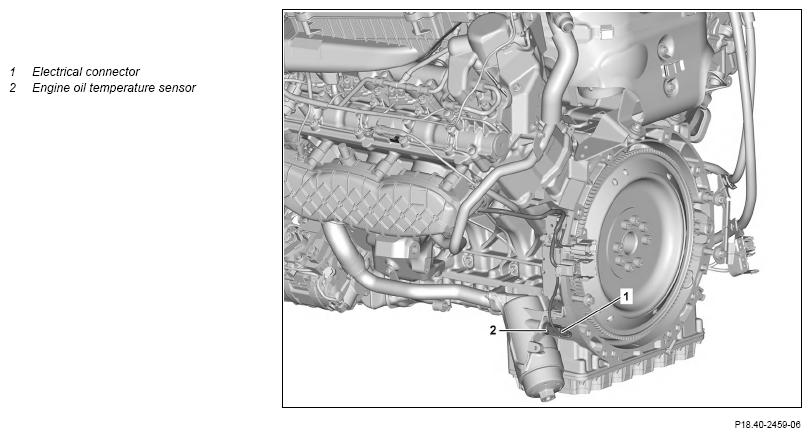

Shown on ENGINE 177
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove bottom engine compartment lining. | Engine 177 in model 205 | AR61.20-P-1105LW |
| 2 | Disconnect electrical connector (1). | ||
| 3 | Unscrew engine oil temperature sensor (2) and remove downward. | *BA07.04-P-1003-01Q | |
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check engine oil level and correct if necessary. | ||
| Engine 176 in model 463.234/239/255 up to model year 2019 | AP18.00-P-0101GGE | ||
| Engine 177 in model 205 | AP18.00-P-1848U | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform engine test run and check engine for leak tightness. |
SENSORS
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA07.04-P-1003-01Q | Engine oil temperature sensor to oil pan top section | Nm | 30 | 30 |
