(Remove/Install Rear Muffler - AR49.10-P-4952ORB)

Engine 626 in model 205

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Raise vehicle		AR00.60-P-1002LWG

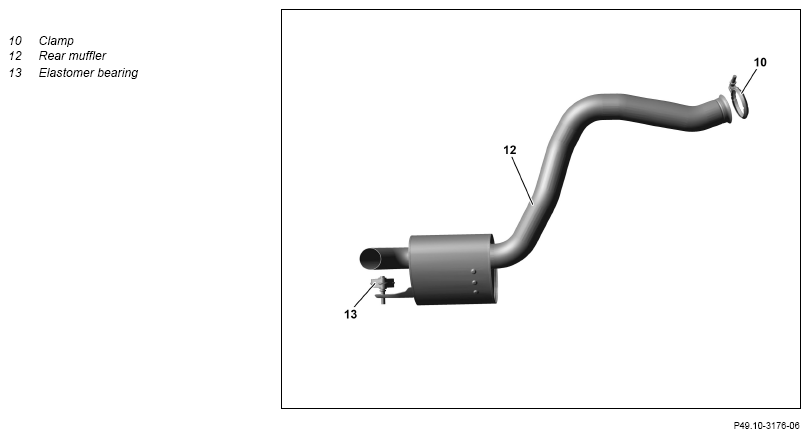

2	Open clamp (10)	Replace clamp (10). Clamp, rear exhaust system to front exhaust system	*BA49.10-P-1004-02B
3	Detach rear muffler (12) on elastomer bearing (13) and remove
4	Check elastomer bearing (13) for damage	In case of complaint ↓ Replace elastomer bearing (13).
5	Remove combustion and corrosion residue at separating points
6	Install in the reverse order
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
7	Carry out an engine test run and check exhaust system for leaktightness

EXHAUST SYSTEM

Number	Designation		Engine 626
BA49.10-P-1004-02B	Clamp, rear exhaust system to front exhaust system	Nm	20
