Remove/Install Low Temperature Water Circuit Radiator - AR09.41-P-6935MNA
ENGINE 177 in MODEL 205

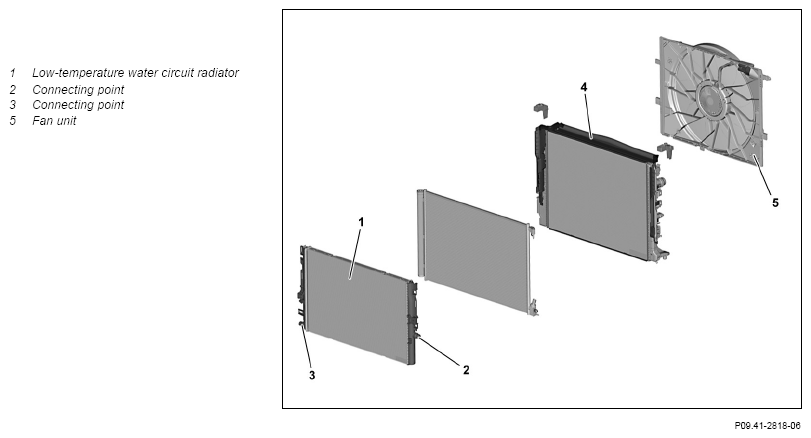

| Remove/install | |||
| 1 | Drain off coolant | AR09.41-P-6834MNA | |
| 2 | Remove fan unit (5) | AR20.40-P-5050MNA | |
| 3 | Unclip engine oil cooler from retaining frame and fix in place | AR18.30-P-1000MNA | |
| 4 | Detach coolant hoses at connecting points (2, 3) | AR20.20-P-7441-01RQ | |
| 5 | Unlock retaining clamps at low-temperature water circuit radiator (1) | ||
| 6 | Remove low-temperature water circuit radiator (1) upwards | ||
| 7 | Check low-temperature water circuit radiator (1) for damage and replace if necessary. | ||
| 8 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform an engine test run and check engine cooling system for proper operation |
