Remove/Install Circulation Pump For Low-Temperature Water Circuit - AR09.41-P-6925MNA
ENGINE 177 in MODEL 205
Shown on right circulation pump (2)

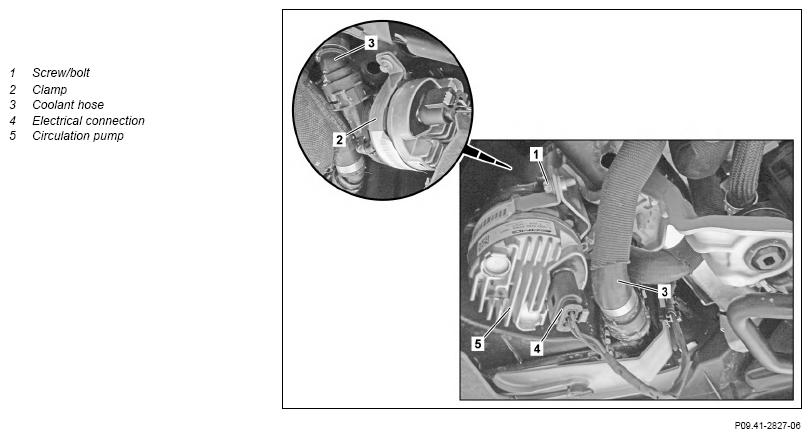

Fig 1: Circulation Pump For Low-Temperature Water Circuit Component Location - Model 205 With Engine 177
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit | AR09.41-P-6834MNA | |
| 2 | Remove screw/bolt (1) and clamp (2) | ||
| 3 | Detach coolant hoses (3) | AR20.20-P-7441-01RQ | |
| 4 | Disconnect electrical connection (4) | ||
| 5.1 | Remove circulation pump (5) downwards | When removing the right circulation pump (5) | |
| 5.2 | Turn circulation pump (5) somewhat and remove downwards | When removing the left circulation pump (5) | |
| 6 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run, check low-temperature circuit cooling system for proper function |
